Product description
- Swivel in the eye/fork version
- Available in the variants 390,00 kg - 20.500,00 kg
- Material: steel
| Working load limit | 1.600,00 kg |
| Material | Steel |
| Shape | Eye/Fork |
| Standard | US Federal Spec. RR-C-271 |
| Identification label available | No |
| Product description | Swivel |
| Brand | Green Pin |
| Type designation | G-7723 |
| eClass 6.2 | 23179106 |
| eClass 4.0 | 23130102 |
| eClass 4.1 | 23170706 |
| eClass 5 | 23179106 |
| eClass 7.1 | 23179106 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 23179106 |
| UNSPSC V13.5 | 24101600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179106 |
| eClass 5.1 | 23179106 |
| eClass 9.0 | 23179106 |
| eClass 10.0.1 | 23179106 |
| GTIN | 8718952092890 |
| eClass 10.1 | 23179106 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23179106 |
| UNSPSC V13.5_S | 241016 |

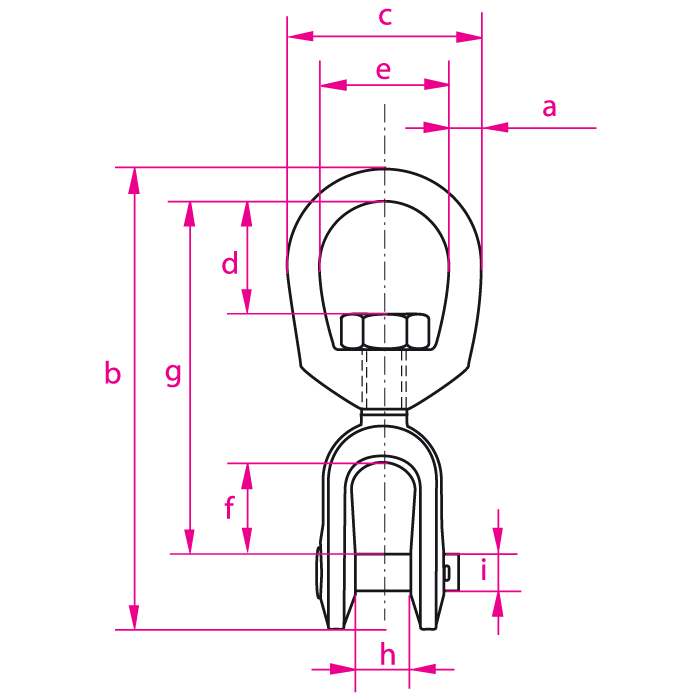

| A | 13 mm |
| B | 154 mm |
| C | 64 mm |
| D | 33 mm |
| E | 38 mm |
| f | 33 mm |
| g | 114 mm |
| h | 19 mm |
| i | 13 mm |
- Swivel in the eye/fork version
- Available in the variants 390,00 kg - 20.500,00 kg
- Material: steel
