• Capacity 10 to 50 tons
• Stroke 152 mm
• Operating pressure 700 bar
• Spring-loaded retraction
• Surface treated piston rod
• Interchangeable drawbar and fork eyes
• Piston wiper prevents contamination

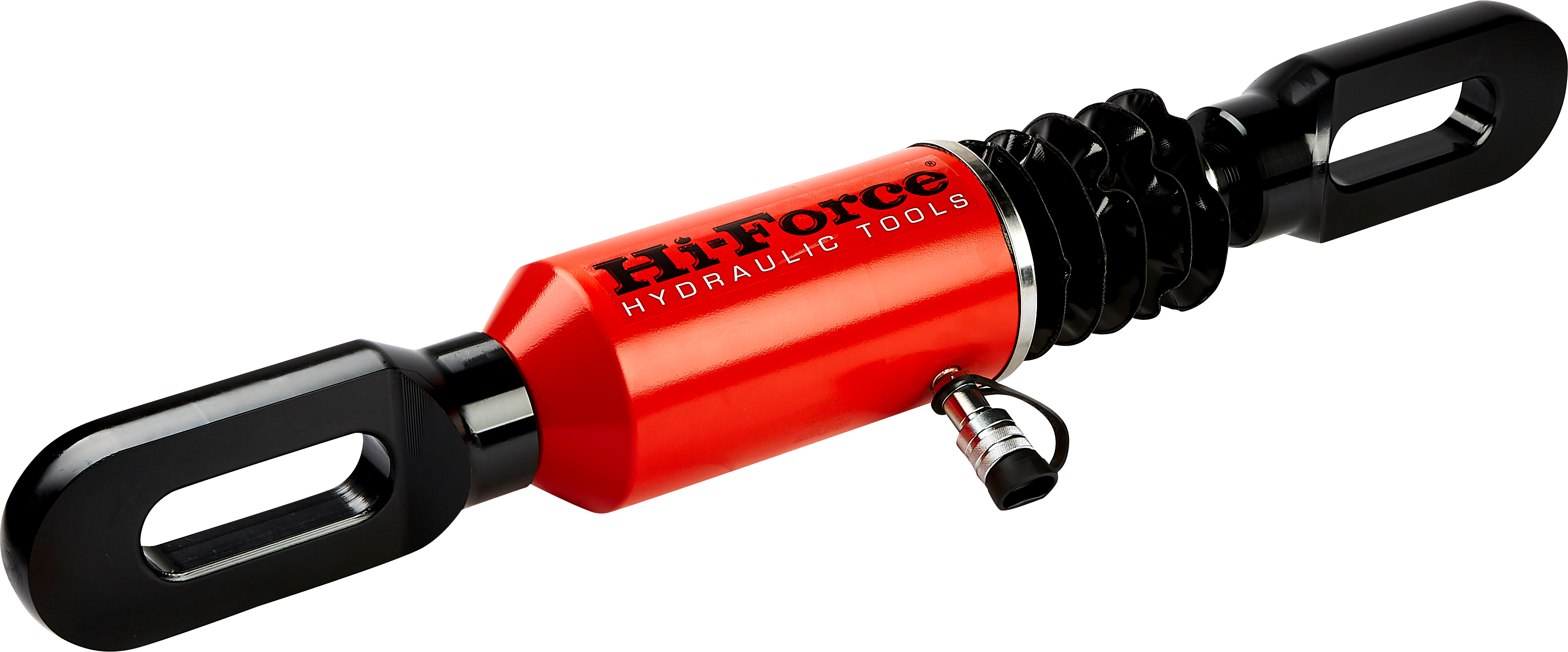

The pulling cylinders of the HPC series comprise four models with pulling force capacities between 10 and 50 tons. All models operate at a maximum operating pressure of 700 bar and feature a single-acting, spring-loaded piston return with a stroke of 152 mm. Thanks to the easily interchangeable drawbar eyes on the piston rod and cylinder base, the 10 tons version can also be equipped with fork eyes. Typical applications for HPC cylinders include plate alignment prior to welding in shipyards, cable tensioning and heavy-duty transport with chains or wire ropes.
