Product description
On request:
- Other lengths, individual loop lengths or special sizes on request - contact us!
| Material | Steel |
| Min. operating temperature | 0 °C |
| WLL under angle 45°- 60° | 1.250,00 kg |
| Manufacturer | Carl Stahl |
| Explosion protection | No |
| Material thickness | 16,00 mm |
| Rope surface | Galvanized |
| Identification label available | No |
| Lashing process | No |
| Standard | similar to DIN EN 13414-1 |
| Effective Working Length (ewl) | 3 m |
| WLL basket hitch parallel | 2.500,00 kg |
| Upper loop length | 195,00 mm |
| Interchangeable connector el. | No |
| Short text product descr. | BHB |
| Type designation | 0 |
| Upper connector | Stranded eyelet |
| Max. operating temperature | 70,00 °C |
| Design | 0 |
| Lower connector | Stranded eyelet |
| Width | 50,00 mm |
| Brand | Carl Stahl |
| Lower loop length | 195,00 mm |
| Working load limit 7 - 45° | 1.750,00 |

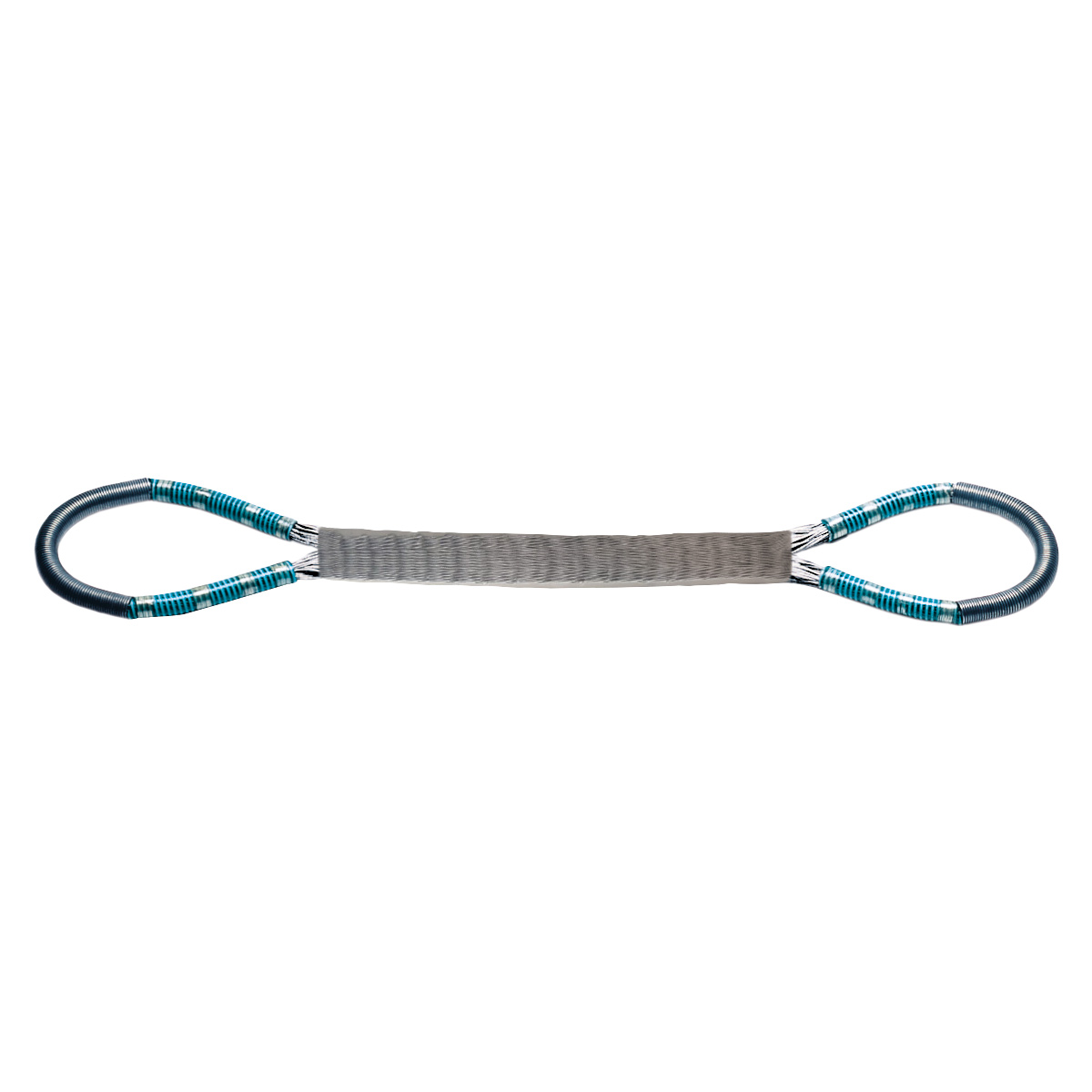

| Product description | Woven wire rope sling |
| Corrosion resistance | No |
| Working load limit | 1.250,00 kg |
| Working load limit 0 - 7° | 2.500,00 kg |
| Woven strap surface | PU coated |
On request:
- Other lengths, individual loop lengths or special sizes on request - contact us!
