| Working load limit | 6.000,00 kg |
| Material | Steel |
| Woven strap surface | PU-coated Fusion one-sided. |
| Working load limit 0 - 7° | 6.000,00 kg |
| Product description | Woven wire rope sling |
| Corrosion resistance | No |
| Working load limit 7 - 45° | 4.200,00 |
| Width | 80,00 mm |
| Brand | Carl Stahl |
| Lower connector | Steel coil |
| Type designation | 0 |
| Upper connector | Steel coil |
| Max. operating temperature | 70,00 °C |
| Design | 0 |
| Interchangeable connector el. | No |
| Short text product descr. | BHB |
| Lashing process | No |
| Effective Working Length (ewl) | 4 m |
| Standard | similar to DIN EN 13414-1 |
| Identification label available | No |
| Explosion protection | No |
| Material thickness | 18,00 mm |
| Rope surface | Galvanized |
| Min. operating temperature | 0 °C |
| WLL under angle 45°- 60° | 3.000,00 kg |
| Manufacturer | Carl Stahl |
Product details:
- Galvanized and PU coated or additionally with Fusion coating on one side.
- Completely twist-free design

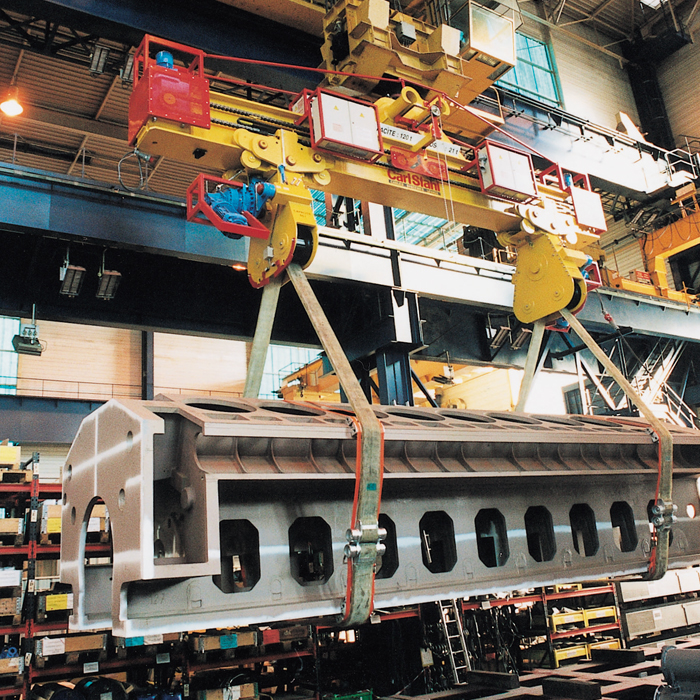

- Range of application: Band wire hoisting belts in lock design are particularly suitable for use with trusses
Scope of delivery:
- Lock must be purchased separately
On request:
- Other lengths and special sizes on request - contact us!
