VV-SCH
• High tensile, patented version with an integrated safety thread in the shackle body
• Full surface support of the bolt in the body on both sides
• The bolt is turnable
• No load on the thread (securing function only)
• Pre-assembled with split pin

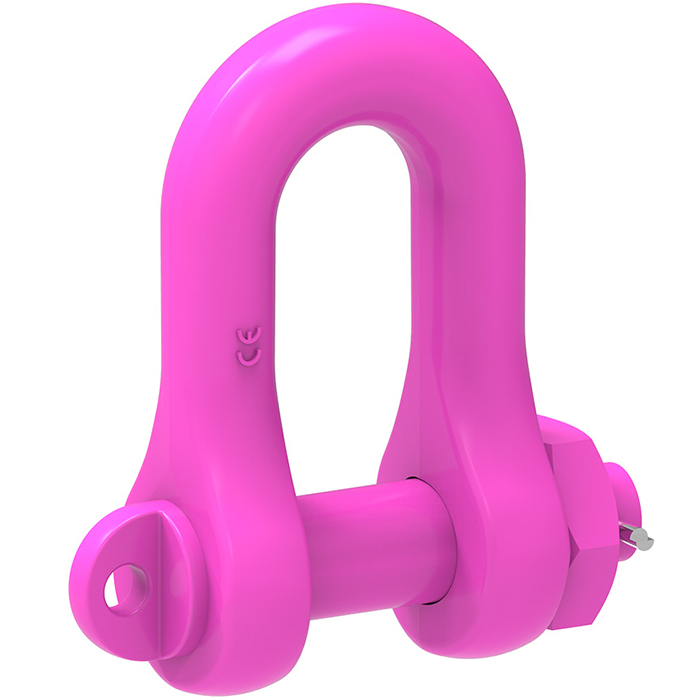

VC-SCH
• Shape acc. to DIN 82101-C with captive nut
• Secured by split pin
| Working load limit | 16.000,00 kg |
| Max. operating temperature | 200,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Corrosion resistance | Yes |
| Material | Steel |
| Surface | Powder-coated |
| Approved for Lifting | Yes |
| Type of Locking | Bolt, Nut and Pin |
| Grade | Grade 10 |
| Shape | Dee shackle |
| Bolt Diametre | 30,00 mm |
| Standard | DIN EN 1677-1 |
| Identification label available | No |
| Product description | Shackle |
| Manufacturer | RUD |
| Brand | VIP |
| Type designation | VC-SCH |

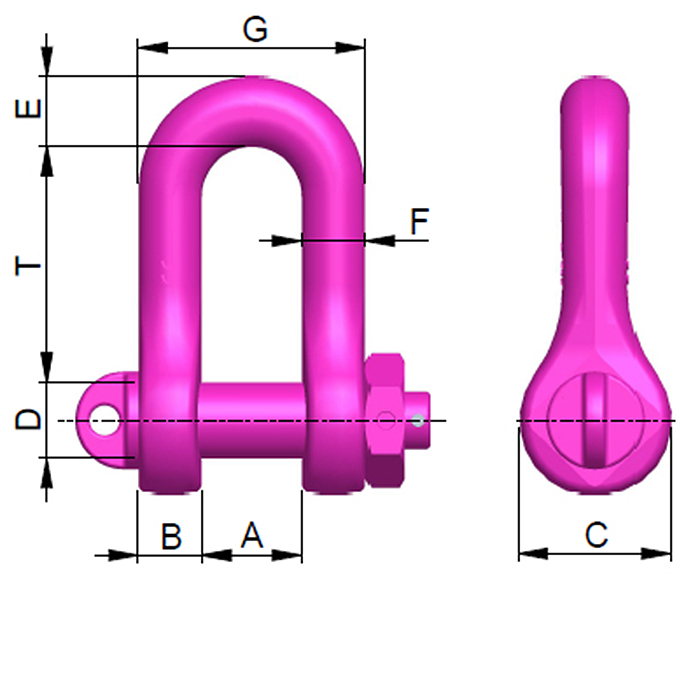

| A | 42 mm |
| B | 27 mm |
| C | 60 mm |
| D | 30 mm |
| E | 29 mm |
| F | 27 mm |
| G | 96 mm |
| T | 91 mm |
| GTIN | 4008244317508 |
