Product description
- Swivel hook in stainless steel design
- With hook safety flap
- Available from 630 kg - 2500 kg permissible payload
| Working load limit | 2.500,00 kg |
| Max. operating temperature | 250,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Stainless steel |
| Grade | Grade 6 |
| Nominal strength | 600,00 N/mm2 |
| Rotates under load | Yes |
| Bearing type | Ball bearing |
| Hook version | Load hook with safety latch |
| Safety latch version | Forged |
| Hook connection | Swivel |
| Hook nominal size | 8 |
| Hook opening | 64,00 mm |
| Surface treatment | Blasted |
| Product description | Swivel Hook |
| Brand | Cromox |
| Type designation | CWHB |
| eClass 6.2 | 36123414 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162600 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162601 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162601 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |

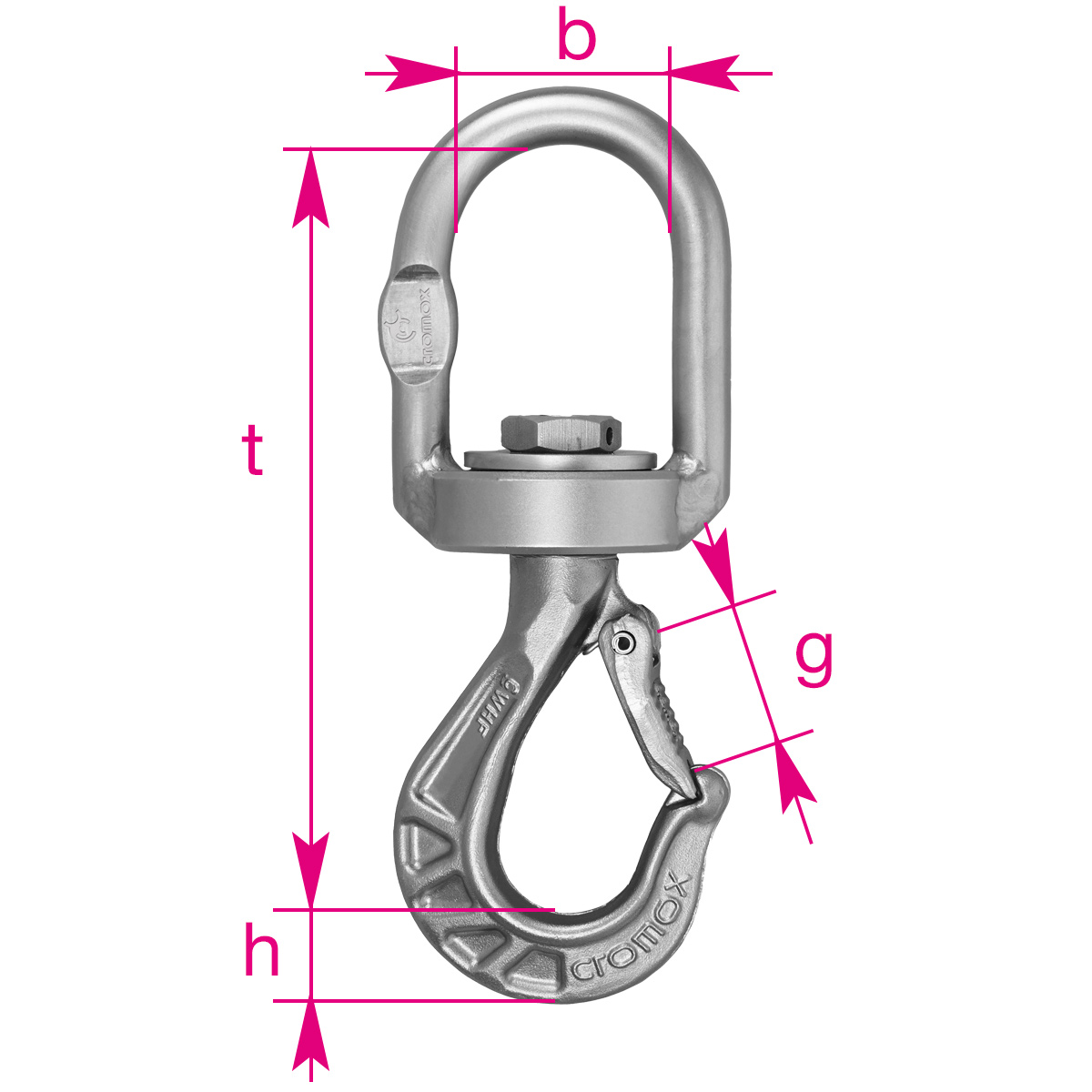

| B | 64 mm |
| g | 40 mm |
| h | 33 mm |
| t | 235 mm |
- Swivel hook in stainless steel design
- With hook safety flap
- Available from 630 kg - 2500 kg permissible payload
