- Automatic closing when load is applied - Bionic design for high load capacity with comparatively low weight - Exchangeable, separately available safety unit - Very high corrosion resistance due to the use of offshore-suitable, exclusively stainless materials
- Automatic closing when load is applied
- Bionic design for high load capacity with comparatively low weight
- Exchangeable, separately available safety unit
- Very high corrosion resistance due to the use of
offshore-suitable, exclusively stainless materials
| Working load limit | 1.250,00 kg |
| Max. operating temperature | 250,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Stainless steel |
| Grade | Grade 6 |
| Nominal strength | 600,00 N/mm2 |
| Hook version | Self-locking hook |
| Hook connection | Clevis |
| Clevis nominal size | 7 mm |
| Hook nominal size | 7 |
| Hook opening | 37,00 mm |
| Surface treatment | Blasted |
| Standard | similar to DIN EN 1677-3 |
| Product description | Self-locking Clevis Hook |
| Brand | Cromox |
| Type designation | CGSL |

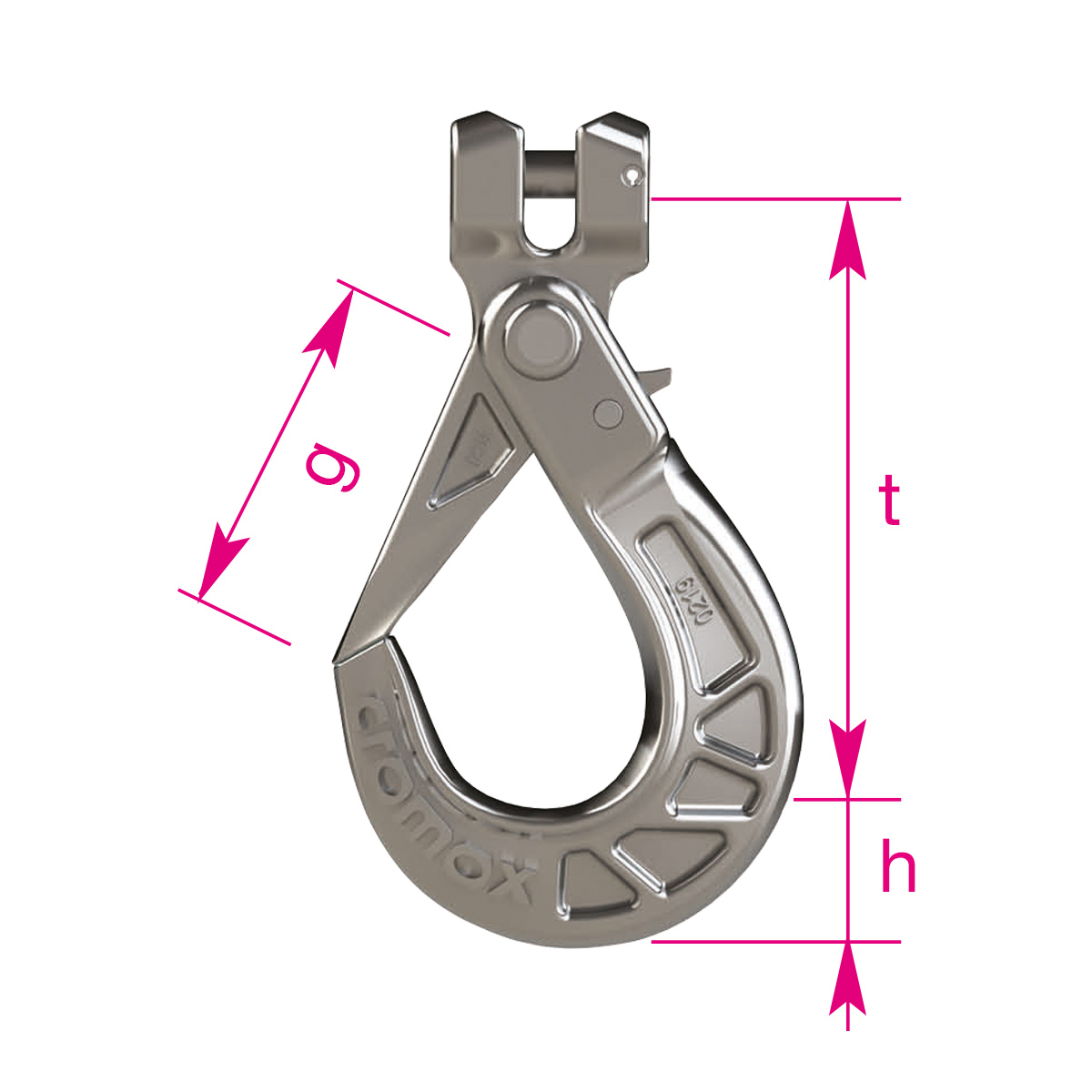

| g | 37 mm |
| h | 25 mm |
| t | 109 mm |
| eClass 6.2 | 36123414 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162600 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162600 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162600 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |
