Opening Width: 7 mm
Length: 50,00 mm
Working load limit: 120,00 kg
Eye Width: 8 mm
Type of Locking: Hinged Fastener
all variants
Materialnumber: 25302010015019
Free Return: No
Free Shipping: No, see Checkout
$5.04
Final price is shown in the shopping cart.
Expected to arrive in: >30 working days
payment options
E-MailWhatsapp
Opening Width7,00 mm
Length50,00 mm
Working load limit120,00 kg
Eye Width8,00 mm
Type of LockingHinged Fastener
right arrow
Opening Width8,00 mm
Length70,00 mm
Working load limit180,00 kg
Eye Width10,00 mm
Type of LockingHinged Fastener
right arrow
Opening Width8,00 mm
Length60,00 mm
Working load limit120,00 kg
Eye Width9,00 mm
Type of LockingHinged Fastener
right arrow
Opening Width16,00 mm
Length120,00 mm
Working load limit450,00 kg
Eye Width18,00 mm
Type of LockingHinged Fastener
right arrow
Opening Width10,00 mm
Length80,00 mm
Working load limit230,00 kg
Eye Width12,00 mm
Type of LockingHinged Fastener
right arrow
Opening Width11,00 mm
Length100,00 mm
Working load limit350,00 kg
Eye Width15,00 mm
Type of LockingHinged Fastener
right arrow

Product description

- Stainless steel carabiner

- with folding clasp

- Available in the versions from 120 kg to 450 kg

Technical Data & Downloads

Specifications

Working load limit120,00 kg
Max. operating temperature100,00 °C
Min. operating temperature20,00 °C
Explosion protectionNo
Corrosion resistanceYes
MaterialStainless steel
Length50,00 mm
Approved for LiftingNo
Type of LockingHinged Fastener
Opening Width7 mm
Eye Width8 mm
Material Diametre5 mm
ShapeC
Standardsimilar to DIN 5299
Identification label availableNo
Product descriptionSnap Hook

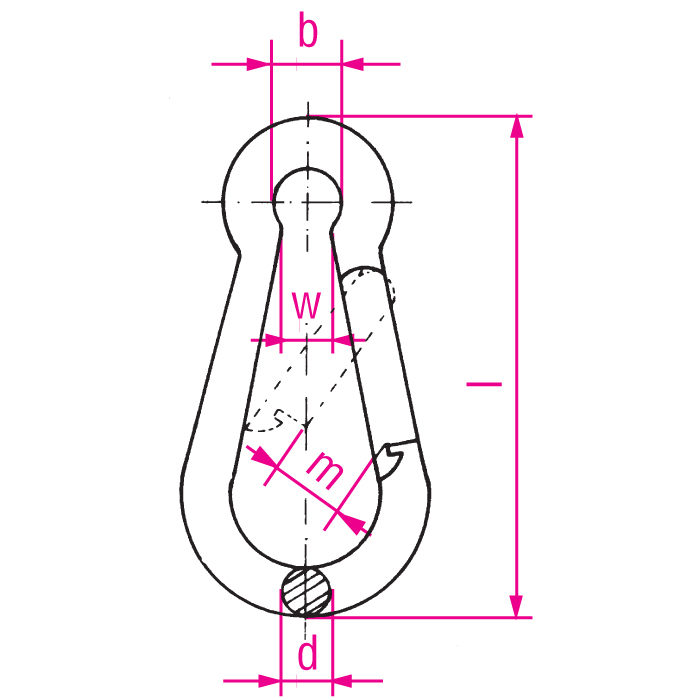

Dimensions

B8 mm
D5 mm
M7 mm
L50 mm
w5 mm
Karabinerhaken aus Edelstahl
