Product description
• Stainless steel
• Material: A4
• Finish: highly polished
• Snap Hook should not be used for lifting and transport of loads!
• Also available as eye hook
| Working load limit | 1.000,00 kg |
| Max. operating temperature | 100,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Corrosion resistance | Yes |
| Material | Stainless steel |
| Length | 199,00 mm |
| Approved for Lifting | No |
| Type of Locking | Safety Latch |
| Opening Width | 30,00 mm |
| Eye Width | 32,00 mm |
| Material Diametre | 13,00 mm |
| Identification label available | No |
| Product description | Snap Hook |

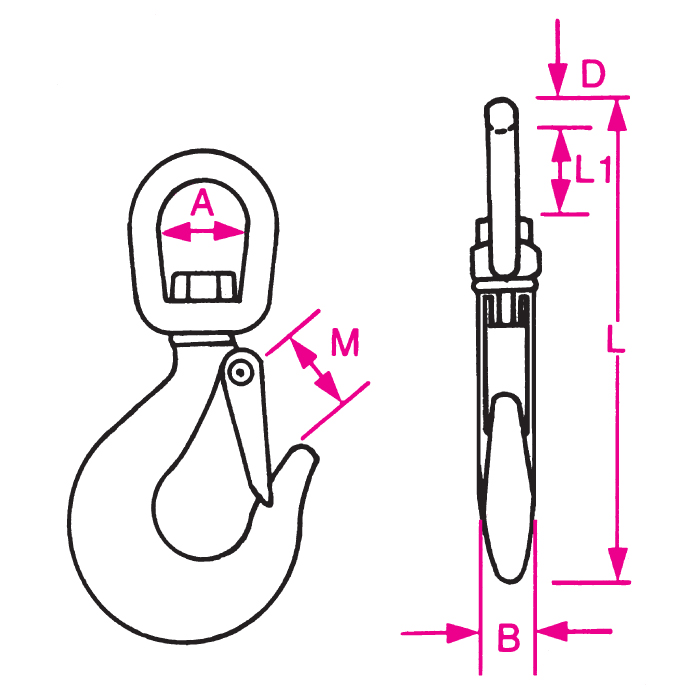

| A | 32 mm |
| B | 20 mm |
| D | 13 mm |
| L | 199 mm |
| L1 | 36 mm |
| M | 30 mm |
• Stainless steel
• Material: A4
• Finish: highly polished
• Snap Hook should not be used for lifting and transport of loads!
• Also available as eye hook
