Rope Clip similar to DIN EN 741 5-5mm

$5.88
Final price is shown in the shopping cart.
Materialnumber
20202200015053

Free Return
No
Free Shipping
No, see Checkout
Shipping
Expected to arrive in 6-30 working days

  You can request a quote in the shopping cart
Payment options:
E-MailWhatsapp
MaterialStainless steel
Min. rope diameter5 mm
Max. rope diameter5 mm
Nominal size5,0
Standardsimilar to DIN EN 741
Identification label availableNo
Product descriptionRope Clip
eClass 6.223130103
eClass 7.123130103
UNSPSC V731162904
eClass 8.023130103
UNSPSC V13.531162904
Defined eStandard1
eClass 5.1.123130103
eClass 5.123130103
eClass 9.023130103
eClass 10.0.123130103
eClass 10.123130103
UNSPSC V20.060131162904
eClass 5.1.423130103
UNSPSC V13.5_S3116
A15 mm
B17 mm
b220 mm
D5 mm
h129 mm
h215 mm
L24 mm
Drahtseilklemme aus Edelstahl schwer

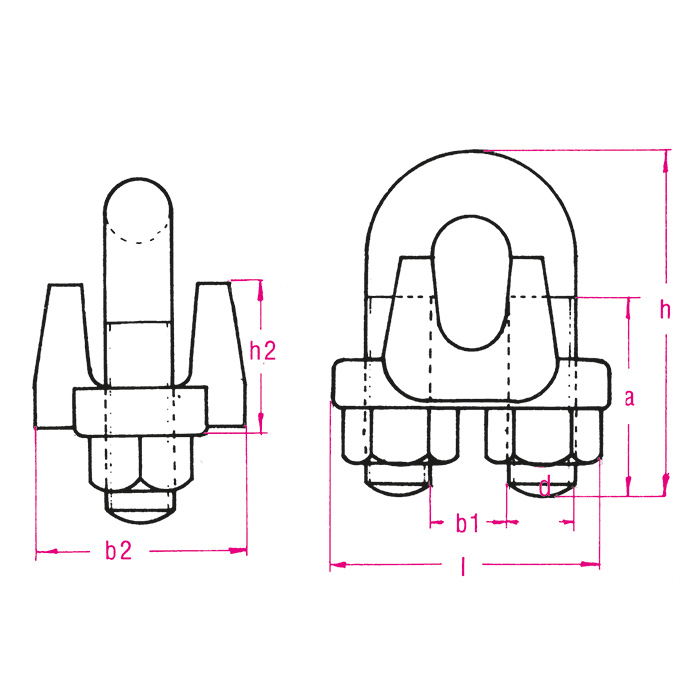

Technical Drawing

Product description

• Similiar DIN 741
• Stainless steel
• Material: A4
• Finish: polished
