Product description
- Shackles in straight design with eyebolts
- In the versions from 160 kg - 5750 kg
| Working load limit | 1.000,00 kg |
| Max. operating temperature | 100,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Corrosion resistance | Yes |
| Material | Stainless steel |
| Approved for Lifting | Yes |
| Type of Locking | Screw pin |
| Material Number | 1.4542 |
| Shape | Dee shackle |
| Bolt Diametre | 10,00 mm |
| Identification label available | No |
| Product description | Shackle |
| Manufacturer | Carl Stahl Benelux |
| eClass 6.2 | 36123411 |
| eClass 4.0 | 23130102 |
| eClass 4.1 | 23130102 |
| eClass 5 | 23130102 |
| eClass 7.1 | 36123411 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 36123411 |
| UNSPSC V13.5 | 24101641 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23130102 |
| eClass 5.1 | 23130102 |
| eClass 9.0 | 36123411 |
| eClass 10.0.1 | 36123411 |
| eClass 10.1 | 36123411 |
| UNSPSC V20.0601 | 24101641 |
| eClass 5.1.4 | 23130102 |
| UNSPSC V13.5_S | 241016 |

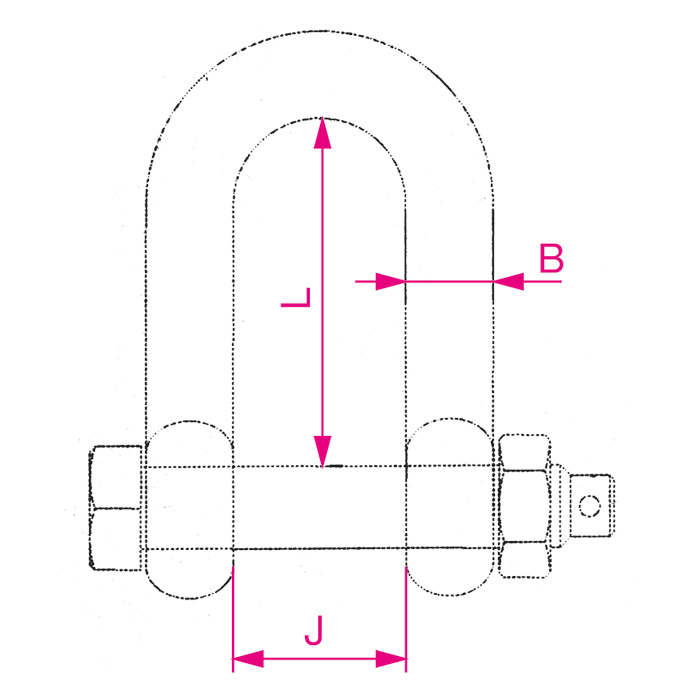

| B | 8 mm |
| J | 16 mm |
| L | 32 mm |
| P | 10 mm |
- Shackles in straight design with eyebolts
- In the versions from 160 kg - 5750 kg
