Type designation: COHF
Hook opening: 66,00 mm
Hook nominal size: 18,00
Working load limit: 7.000,00 kg
Product description: Eye Hook
all variants
Materialnumber: 25201500015237
Free Return: No
Free Shipping: No, see Checkout
$485.76
Freight, import duties & customs fees are confirmed in your quote
Estimated transit: 15-30 working daysCustoms clearance may extend delivery
payment options
E-MailWhatsapp
Type designationCOHF
Hook opening25,00 mm
Hook nominal size6
Working load limit900,00 kg
Product descriptionEye Hook
right arrow
Type designationCOHF
Hook opening20,00 mm
Hook nominal size4
Working load limit400,00 kg
Product descriptionEye Hook
right arrow
Type designationCOHF
Hook opening40,00 mm
Hook nominal size10,00
Working load limit2.450,00 kg
Product descriptionEye Hook
right arrow
Type designationCOHF
Hook opening51,00 mm
Hook nominal size13,00
Working load limit3.850,00 kg
Product descriptionEye Hook
right arrow
Type designationCOHF
Hook opening66,00 mm
Hook nominal size16,00
Working load limit5.000,00 kg
Product descriptionEye Hook
right arrow
Type designationCOHF
Hook opening32,00 mm
Hook nominal size8
Working load limit1.550,00 kg
Product descriptionEye Hook
right arrow
Type designationCOHF
Hook opening66,00 mm
Hook nominal size18,00
Working load limit7.000,00 kg
Product descriptionEye Hook
right arrow

Product description

• Nominal thickness 4 - 13: Grade 6
• Nominal thickness 16 - 18: Grade 5
• Material: 1.4462
• Surface: blasted

Technical Data & Downloads

Specifications

Working load limit7.000,00 kg
Max. operating temperature250,00 °C
Min. operating temperature-40,00 °C
Explosion protectionNo
MaterialStainless steel
GradeGrade 5
Nominal strength500,00 N/mm2
Hook versionLoad hook with safety latch
Safety latch versionForged
Hook connectionEyelet
Eyelet diameter55,00 mm
Hook nominal size18,00
Hook opening66,00 mm
Surface treatmentBlasted
Standardsimilar to DIN EN 1677-2
Product descriptionEye Hook
BrandCromox
Type designationCOHF

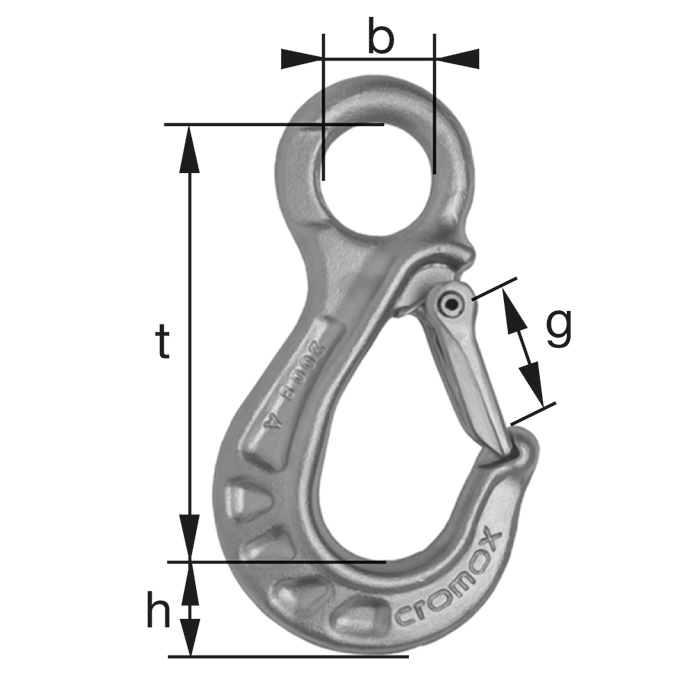

Dimensions

B55 mm
g66 mm
h51 mm
t230 mm
Niro Ösenhaken COHF mit Sicherungsklappe

Classification standards

eClass 6.236123414
eClass 4.0231202XX
eClass 4.123120201
eClass 536129090
eClass 7.136123414
UNSPSC V731162600
eClass 8.036123414
UNSPSC V13.531162600
Defined eStandard1
eClass 5.1.123120201
eClass 5.123120201
eClass 9.036123414
eClass 10.0.136123414
eClass 10.136123414
UNSPSC V20.060131162600
eClass 5.1.423120201
UNSPSC V13.5_S3116
