Clevis Hook CGHF 1.550kg NG 8 Grade 6

$147.62
Final price is shown in the shopping cart.
Materialnumber
25201500015229

Free Return
No
Free Shipping
No, see Checkout
Shipping
Expected to arrive in 6-30 working days

  You can request a quote in the shopping cart
Payment options:
E-MailWhatsapp
Working load limit1.550,00 kg
Max. operating temperature250,00 °C
Min. operating temperature-40,00 °C
Explosion protectionNo
MaterialStainless steel
GradeGrade 6
Nominal strength600,00 N/mm2
Hook versionLoad hook with safety latch
Safety latch versionForged
Hook connectionClevis
Clevis nominal size8 mm
Hook nominal size8
Hook opening32,00 mm
Surface treatmentBlasted
Standardsimilar to DIN EN 1677-2
Product descriptionClevis Hook
BrandCromox
Type designationCGHF
eClass 6.236123414
eClass 4.036122204
eClass 4.136122204
eClass 536129090
eClass 7.136123414
UNSPSC V731162600
eClass 8.036123414
UNSPSC V13.531162600
Defined eStandard1
eClass 5.1.123120201
eClass 5.123120201
eClass 9.036123414
eClass 10.0.136123414
eClass 10.136123414
UNSPSC V20.060131162600
eClass 5.1.423120201
UNSPSC V13.5_S3116
g32 mm
h28 mm
t97 mm
Niro Gabelkopfhaken CGHF mit Sicherungsk

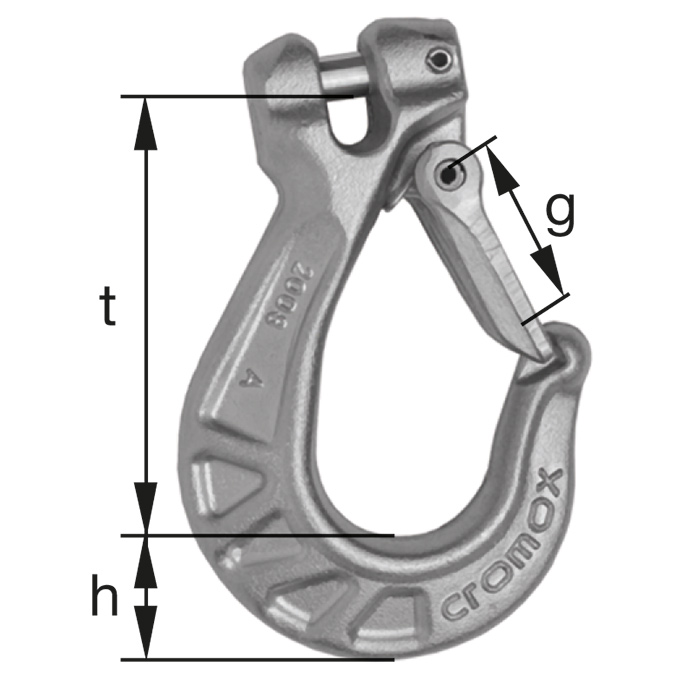

Technical Drawing

Product description

• Grade 6
• Material: 1.4462
• Surface: blasted
