Product description
• Grade 6
• Material: 1.4404
• Surface: blasted
| Working load limit | 5.150,00 kg |
| Max. operating temperature | 250,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Stainless steel |

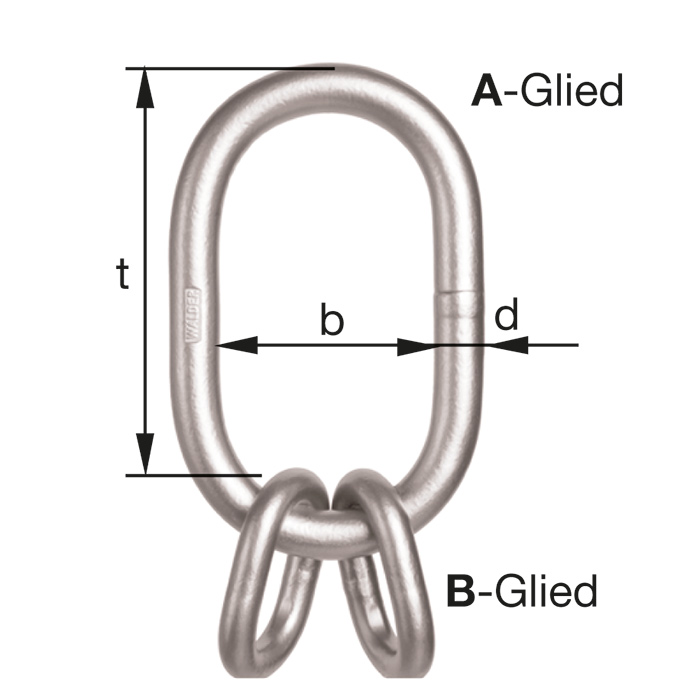

| Inner Width | 90,00 mm |
| Inner Height | 160,00 mm |
| Grade | Grade 6 |
| Number of Legs | 4 |
| WLL under angle 0° - 45° | 5.150,00 kg |
| WLL under angle 45°- 60° | 3.650,00 kg |
| Nominal strength | 600,00 N/mm2 |
| Material thickness | 22,00 mm |
| Single link type | Suspension link |
| Mounting block | B-link |
| B-link inside width | 40,00 mm |
| B-link inside height | 85,00 mm |
| Material thickness con. link | 18,00 mm |
| Nominal size | 22,0 |
| Suitable for Hook Size | Nr. 5 |
| Surface treatment | Blasted |
| Standard | similar to DIN EN 1677-4 |
| Product description | Suspension fitting |
| Brand | Cromox |
| Type designation | CAK |
| eClass 6.2 | 23179104 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 24101600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 241016 |
