Product description
• Grade 6
• Material: 1.4462
• Surface: blasted
All master links and master link assemblies have a flattened section
for fitting of connecting elements (e.g. clevis shackle type CGS).
Specifications
| Working load limit | 2.450,00 kg |
| Max. operating temperature | 250,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Stainless steel |

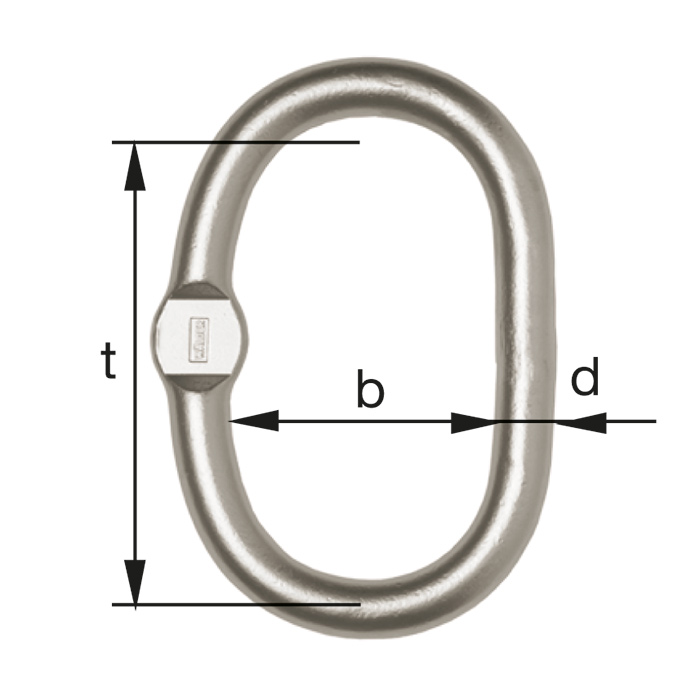

| Inner Width | 25,00 mm |
| Inner Height | 54,00 mm |
| Grade | Grade 6 |
| Number of Legs | 1 |
| Nominal strength | 600,00 N/mm2 |
| Material thickness | 13,00 mm |
| Single link type | Suspension link |
| Nominal size | 13,0 |
| Surface treatment | Blasted |
| Standard | similar to DIN EN 1677-4 |
| Product description | Suspension link |
| Brand | Cromox |
| Type designation | CBGF |
