Product description
• Grade 6
• Material: 1.4462
• Surface: blasted
All master links and master link assemblies have a flattened section
for fitting of connecting elements (e.g. clevis shackle type CGS).
| Working load limit | 16.000,00 kg |
| Max. operating temperature | 250,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Stainless steel |
| Inner Width | 140,00 mm |
| Inner Height | 260,00 mm |
| Grade | Grade 6 |
| Number of Legs | 1 |
| Nominal strength | 600,00 N/mm2 |
| Material thickness | 36,00 mm |
| Single link type | Suspension link |
| Nominal size | 36,0 |
| Suitable for Hook Size | Nr. 16 |
| Surface treatment | Blasted |
| Standard | similar to DIN EN 1677-4 |
| Product description | Suspension link |
| Brand | Cromox |
| Type designation | CAGF |
| eClass 6.2 | 23179104 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 31151609 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 31151609 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 31151609 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 3115 |

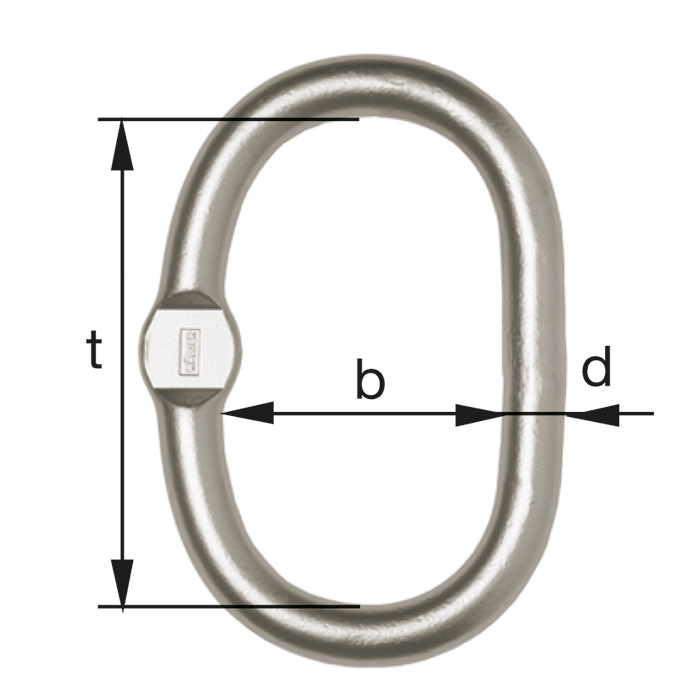

| B | 140 mm |
| D | 36 mm |
| t | 260 mm |
• Grade 6
• Material: 1.4462
• Surface: blasted
All master links and master link assemblies have a flattened section
for fitting of connecting elements (e.g. clevis shackle type CGS).
