Product description
Material: steel
Surface: galvanised
| Max. operating temperature | 100,00 °C |
| Min. operating temperature | 20,00 °C |
| Explosion protection | No |
| Corrosion resistance | Yes |
| Material | Steel |
| Surface | electrogalvanized |
| Approved for Lifting | No |
| Opening Width | 26,00 mm |
| Adjustment Range | 145,00 mm |
| Length Closed | 428,00 mm |
| Turnbuckle Fittings | Hook / Hook |
| Thread Size | M22 |
| Standard | DIN 1480 |
| Identification label available | No |
| Product description | Turnbuckle |
| Manufacturer | Kleinsorge |
| Turnbuckle length app. 1 | 185,00 mm |
| Turnbuckle length app. 2 | 185,00 mm |
| eClass 6.2 | 23130101 |
| eClass 4.0 | 23130101 |
| eClass 4.1 | 23130101 |
| eClass 5 | 23130101 |
| eClass 7.1 | 23130101 |
| UNSPSC V7 | 31162405 |
| eClass 8.0 | 23130101 |
| UNSPSC V13.5 | 31162405 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23130101 |
| eClass 5.1 | 23130101 |
| eClass 9.0 | 23130101 |
| eClass 10.0.1 | 23130101 |
| GTIN | 4251063416314 |
| eClass 10.1 | 23130101 |
| UNSPSC V20.0601 | 31162405 |
| eClass 5.1.4 | 23130101 |
| UNSPSC V13.5_S | 3116 |

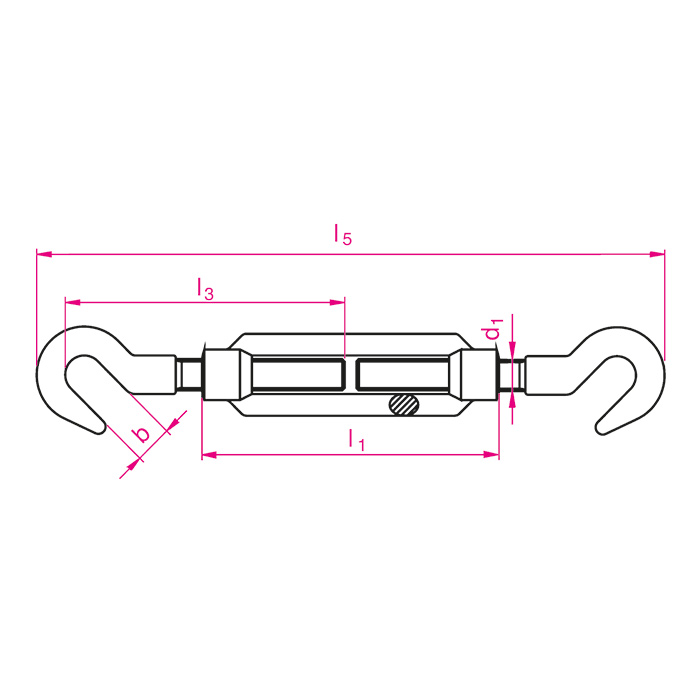

| B | 26 mm |
| d1 | 22 mm |
| I5 | 428 mm |
| l1 | 220 mm |
| l3 | 185 mm |
Material: steel
Surface: galvanised
