Product description
Material: steel
Surface: galvanised
| Max. operating temperature | 100,00 °C |
| Min. operating temperature | 20,00 °C |
| Explosion protection | No |
| Corrosion resistance | Yes |
| Material | Steel |
| Surface | electrogalvanized |
| Approved for Lifting | No |
| Opening Width | 11,00 mm |
| Adjustment Range | 75,00 mm |
| Length Closed | 182,00 mm |
| Turnbuckle Fittings | Hook / Eye |
| Eye Diametre | 10,00 mm |
| Thread Size | M8 |
| Standard | DIN 1480 |
| Identification label available | No |
| Product description | Turnbuckle |
| Manufacturer | Kleinsorge |
| Turnbuckle length app. 1 | 85,00 mm |
| Turnbuckle length app. 2 | 84,00 mm |
| eClass 6.2 | 23130101 |
| eClass 4.0 | 23130101 |
| eClass 4.1 | 23130101 |
| eClass 5 | 23130101 |
| eClass 7.1 | 23130101 |
| UNSPSC V7 | 31162405 |
| eClass 8.0 | 23130101 |
| UNSPSC V13.5 | 31162405 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23130101 |
| eClass 5.1 | 23130101 |
| eClass 9.0 | 23130101 |
| eClass 10.0.1 | 23130101 |
| GTIN | 4251063415706 |
| eClass 10.1 | 23130101 |
| UNSPSC V20.0601 | 31162405 |
| eClass 5.1.4 | 23130101 |
| UNSPSC V13.5_S | 3116 |

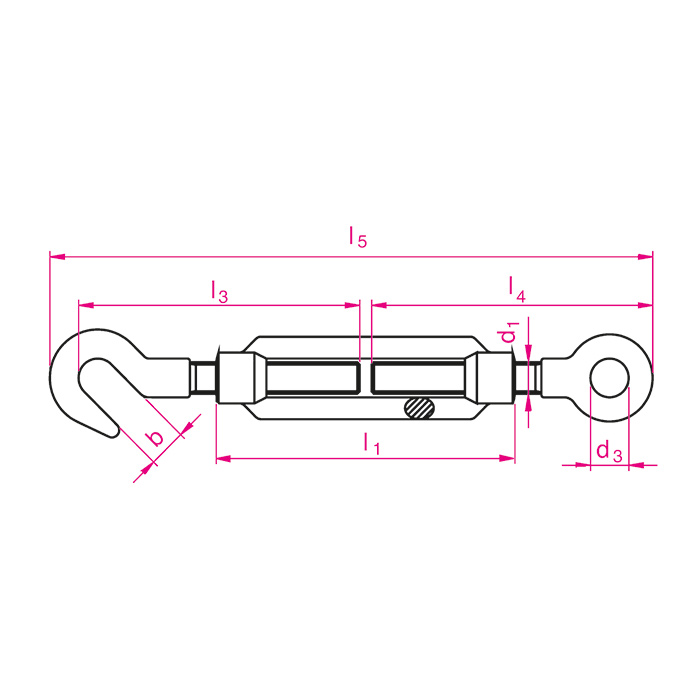

| B | 11 mm |
| d1 | 8 mm |
| d3 | 10 mm |
| I5 | 182 mm |
| l1 | 110 mm |
| l3 | 85 mm |
| l4 | 84 mm |
Material: steel
Surface: galvanised
