Product description
Clevis shackle with nut and split pin for chain connection
| Working load limit | 10.000,00 kg |
| Max. operating temperature | 200,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Corrosion resistance | Yes |
| Material | Steel |
| Approved for Lifting | Yes |
| Type of Locking | Bolt, Nut and Pin |
| Grade | Grade 8 |
| Shape | Dee shackle |
| Bolt Diametre | 30,00 mm |
| Standard | DIN EN 1677-1 |
| Identification label available | No |
| Product description | Clevis Shackle |
| Manufacturer | Thiele |
| Type name | TWN 0862 |
| eClass 6.2 | 36123411 |
| eClass 4.0 | 23130102 |
| eClass 4.1 | 23130102 |
| eClass 5 | 23130102 |
| eClass 7.1 | 36123411 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 36123411 |
| UNSPSC V13.5 | 24101641 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23130102 |
| eClass 5.1 | 23130102 |
| eClass 9.0 | 36123411 |
| eClass 10.0.1 | 36123411 |
| eClass 10.1 | 36123411 |
| UNSPSC V20.0601 | 24101641 |
| eClass 5.1.4 | 23130102 |
| UNSPSC V13.5_S | 241016 |

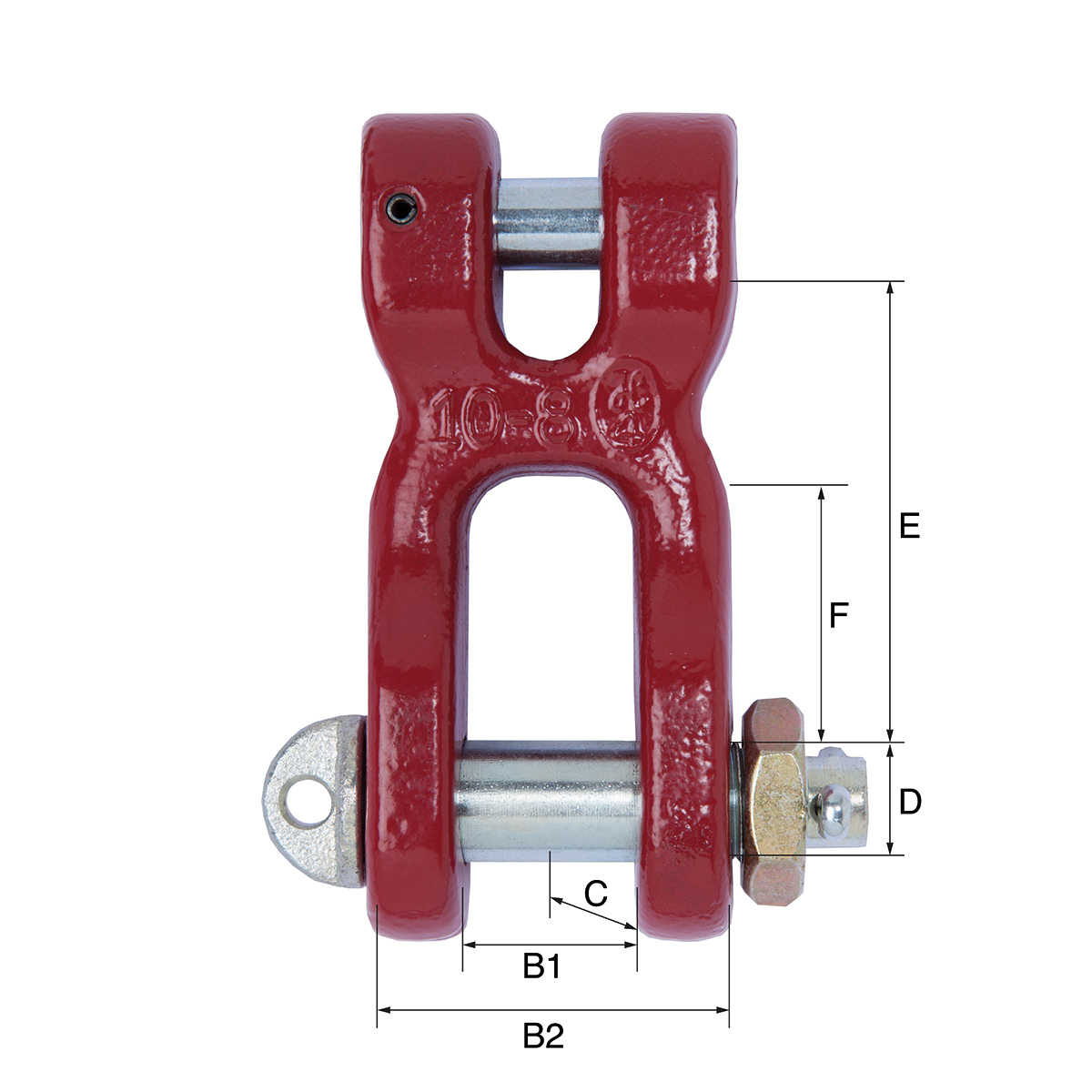

| B1 | 42 mm |
| B2 | 100 mm |
| C | 60 mm |
| D | 30 mm |
| E | 115 mm |
| F | 63 mm |
Clevis shackle with nut and split pin for chain connection
