• Safety factor: minimum breaking load = 5 times WLL • Finish: Galvanised • Stamped: with load capacity (WLL/kg) and manufacturer’s mark • On request with certificate acc. to EN 10204-3.1 • Load capacity (WLL/kg) indicated on the shackles must not be exceeded!
• Safety factor: minimum breaking load = 5 times WLL
• Finish: Galvanised
• Stamped: with load capacity (WLL/kg) and manufacturer’s mark
• On request with certificate acc. to EN 10204-3.1
• Load capacity (WLL/kg) indicated on the shackles must not be exceeded!
| Working load limit | 160,00 kg |
| Max. operating temperature | 100,00 °C |
| Min. operating temperature | 0 °C |
| Explosion protection | No |
| Corrosion resistance | Yes |
| Material | Steel |
| Surface | electrogalvanized |
| Approved for Lifting | Yes |
| Type of Locking | Screw pin |
| Shape | Dee shackle |
| Bolt Diametre | 6 mm |
| Standard | similar to DIN EN 82101 |
| Identification label available | No |
| Product description | Shackle |
| Manufacturer | Kleinsorge |

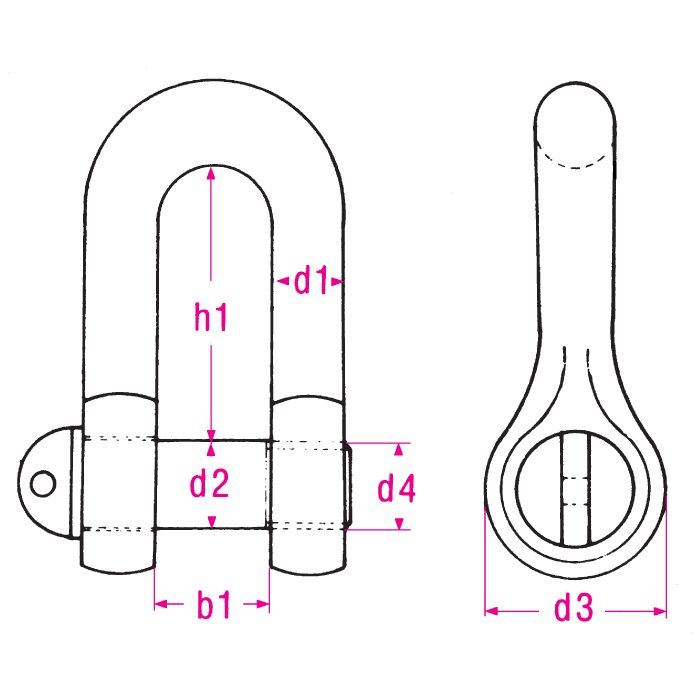

| B1 | 8 mm |
| d1 | 5 mm |
| d2 | 6 mm |
| d3 | 12 mm |
| d4 | 6 mm |
| h1 | 18 mm |
| eClass 6.2 | 36123411 |
| eClass 4.0 | 23130102 |
| eClass 4.1 | 23130102 |
| eClass 5 | 23130102 |
| eClass 7.1 | 36123411 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 36123411 |
| UNSPSC V13.5 | 24101641 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23130102 |
| eClass 5.1 | 23130102 |
| eClass 9.0 | 36123411 |
| eClass 10.0.1 | 36123411 |
| GTIN | 4251063400023 |
| eClass 10.1 | 36123411 |
| UNSPSC V20.0601 | 24101641 |
| eClass 5.1.4 | 23130102 |
| UNSPSC V13.5_S | 241016 |
