Product description
• Material: bow and pin in high-tensile steel, grade 8, quenched and tempered
• Safety factor: Minimum breaking load = 5 times WLL (load capacity)
• Surface: bow painted silver, pin painted green
• Temperature range: -20°C (-4°F) to +200°C (+392°F)
• Certificates: On request a works test certificate, certificate of basic raw material, manufacturer’s test certificate and/or CE certificate of conformity are available. All shackles starting from 75 tons come with a Lloyd’s Register of Shipping proof load certificate.

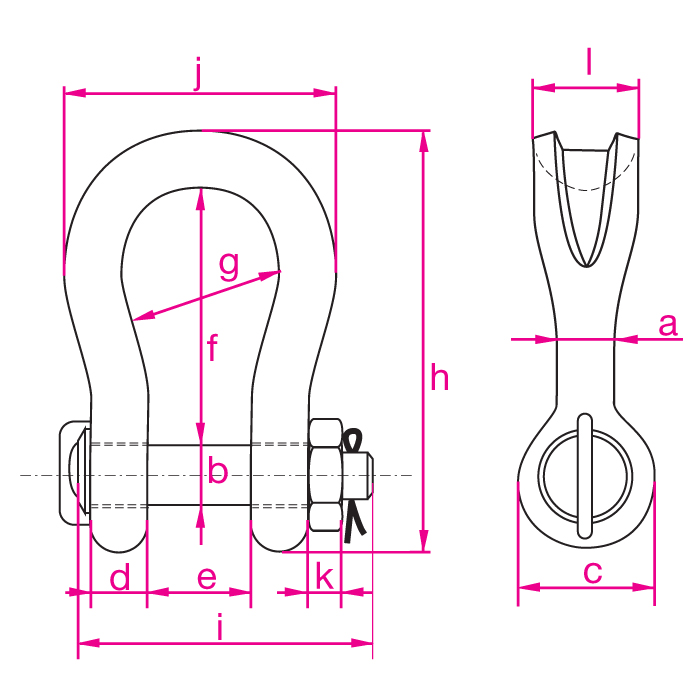

• Note: Inner width and length ± 5% forging tolerance
