Product description
• Grade 8, no flattened section
• With welded ring fork
• For 3- and 4-leg chain sling acc. to EN 818
| Working load limit | 11.200,00 kg |
| Max. operating temperature | 400,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Inner Width | 110,00 mm |
| Inner Height | 200,00 mm |
| Grade | Grade 8 |
| Number of Legs | 4 |
| WLL under angle 0° - 45° | 11.200,00 kg |
| WLL under angle 45°- 60° | 8.000,00 kg |
| Nominal strength | 800,00 N/mm2 |
| Material thickness | 32,00 mm |
| Single link type | Suspension set |
| Mounting block | Ring fork |
| Colour | red |
| RAL colour no. | RAL 3000 Flame Red |
| Nominal size | 13,0 |
| Suitable for Hook Size | Nr. 12 |
| Surface treatment | Lacquered |
| Standard | DIN 5688-3 |
| Product description | Suspension fitting |
| Brand | Cartec80 |
| Type designation | CP4 |
| eClass 6.2 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 24101600 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| GTIN | 8013429887185 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 241016 |

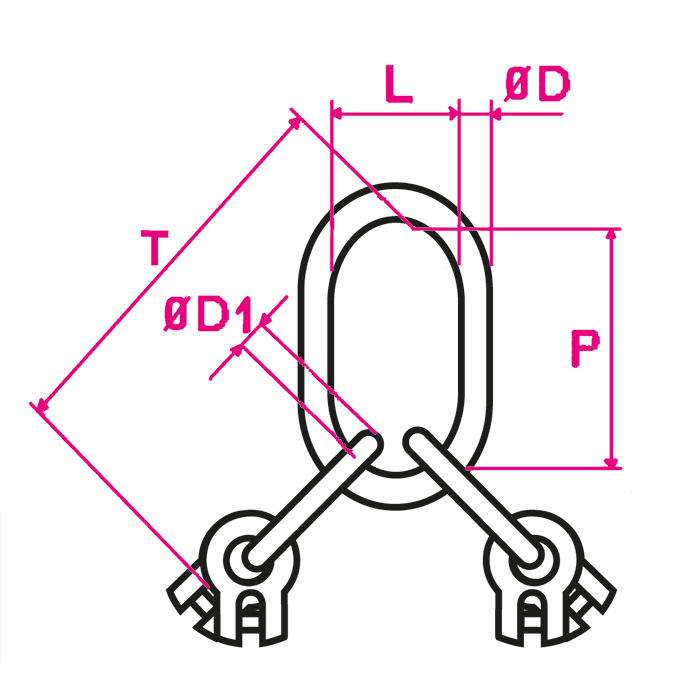

| L | 110 mm |
| P | 200 mm |
| T | 378 mm |
| ØD | 32 mm |
| ØD1 | 22 mm |
• Grade 8, no flattened section
• With welded ring fork
• For 3- and 4-leg chain sling acc. to EN 818
