Product description
- VIP dominator for making endless wreath chains
- For wreath chains with dominator max. inclination angle 0-7°
| Working load limit | 31.500,00 kg |
| Max. operating temperature | 380,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 10 |
| Nominal strength | 1.000,00 N/mm2 |
| Single link type | Chain connecting link |
| Colour | blue |
| Nominal size | 28,0 |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-4 |
| Product description | Chain Connector |
| Brand | VIP |
| eClass 6.2 | 23179104 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 31151609 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 31151609 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 31151609 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 3115 |

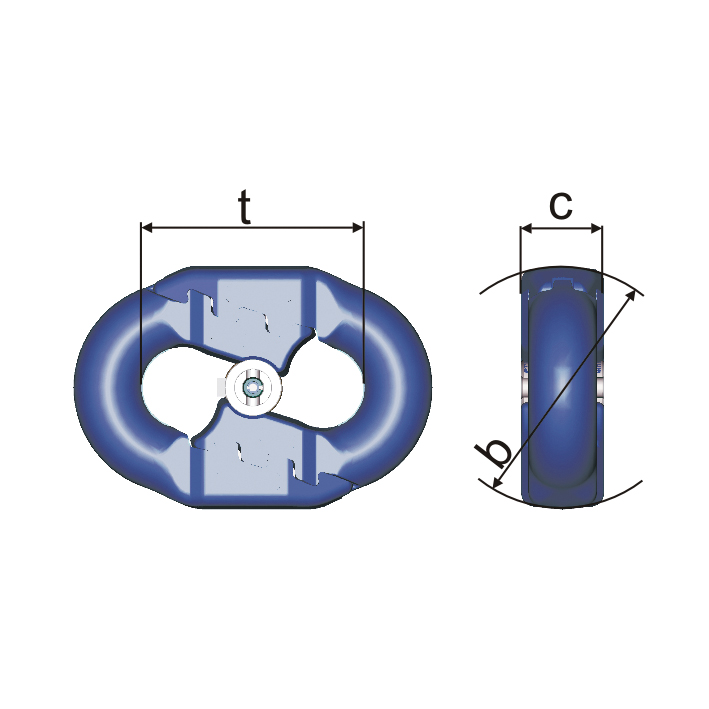

| B | 119 mm |
| C | 40 mm |
| t | 126 mm |
- VIP dominator for making endless wreath chains
- For wreath chains with dominator max. inclination angle 0-7°
