| Working load limit | 630,00 kg |
| Max. operating temperature | 380,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 10 |
| Nominal strength | 1.000,00 N/mm2 |
| Hook version | Load hook with safety latch |
| Safety latch version | Forged |
| Hook connection | Clevis |
| Clevis nominal size | 4 mm |
| Hook nominal size | 4 |
| Hook opening | 18,00 mm |
| Colour | pink |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-2 |
| Product description | Clevis Hook |
| Manufacturer | RUD |
| Brand | VIP |
| Short text product descr. | Clevis Hk. |
| Type designation | VMH |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162600 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| GTIN | 4008244219116 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162600 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |

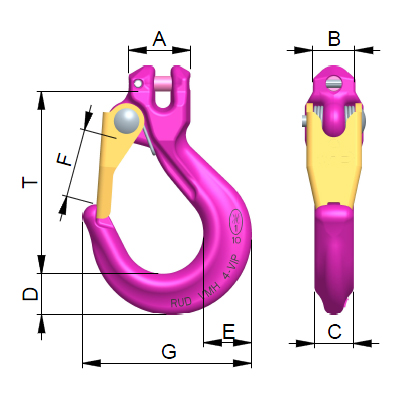

| A | 20 mm |
| B | 14 mm |
| C | 12.5 mm |
| D | 13 mm |
| E | 14 mm |
| F | 18 mm |
| G | 52 mm |
| T | 56 mm |
• No protruding hook tip
• Broad hook tip to prevent misuse
• Forged and tempered safety latch that locks on the hook tip to avoid lateral bending
• 3-times wound stainless steel double leg spring
• Both sides with wear marks.
• Wear marks for checking the mouth opening!
• Fmax. = Distance of the marker points
• Patented wear marks that indicate discard criteria without measuring
