• Fast, easy and economic assembly of endless chains • Pitch of H-Connector corresponds to pitch of chain • Ergonomic shape • Enhanced gliding over edges • Highly flexible: Adapts to both, the shape of the chain and the load Attention: Suitable for use with round steel chains DIN 818-2 in Gr. 8, VIP...
show more
• Fast, easy and economic assembly of endless chains
• Pitch of H-Connector corresponds to pitch of chain
• Ergonomic shape
• Enhanced gliding over edges
• Highly flexible: Adapts to both, the shape of the chain and the load
Attention:
Suitable for use with round steel chains DIN 818-2 in Gr. 8, VIP-Gr. 10 and ICE-Gr. 12
| Working load limit | 8.000,00 kg |
| Max. operating temperature | 380,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 12 |
| Nominal strength | 1.200,00 N/mm2 |
| Single link type | H-connector |
| Nominal size | 13,0 |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-4 |
| Product description | H-Connector |
| Brand | ICE |
| Type designation | IH |

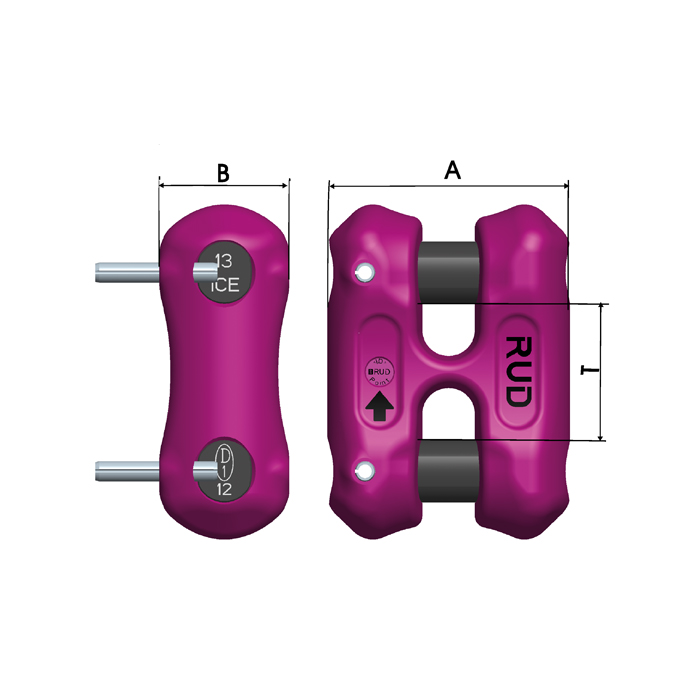

| A | 73 mm |
| B | 40 mm |
| T | 39 mm |
| eClass 6.2 | 23179104 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 24101600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| GTIN | 4008244281830 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 241016 |
