• Suitable for standardised skip bin pins acc. to DIN/EN 30720
• Easy operation of bolt and hook safety devices
• Foolproof chain connection
• Wear marks for checking the mouth opening
• Patented wear marks that indiacte discard criteria without measuring.
• Antislip securing lever without risk of injury
Standard: DIN EN 1677-3
| Working load limit | 8.000,00 kg |
| Max. operating temperature | 300,00 °C |
| Min. operating temperature | -60,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 12 |
| Nominal strength | 1.200,00 N/mm2 |
| Hook version | Self-locking hook |
| Hook connection | Clevis |
| Clevis nominal size | 13,00 mm |
| Hook nominal size | 13,00 |
| Hook opening | 50,00 mm |
| Colour | pink |
| RAL colour number | RAL 4006 Traffic Purple |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-1,DIN EN 1677-3 |
| Product description | Automatic skip hook |
| Brand | ICE |
| Type designation | IMAGH |

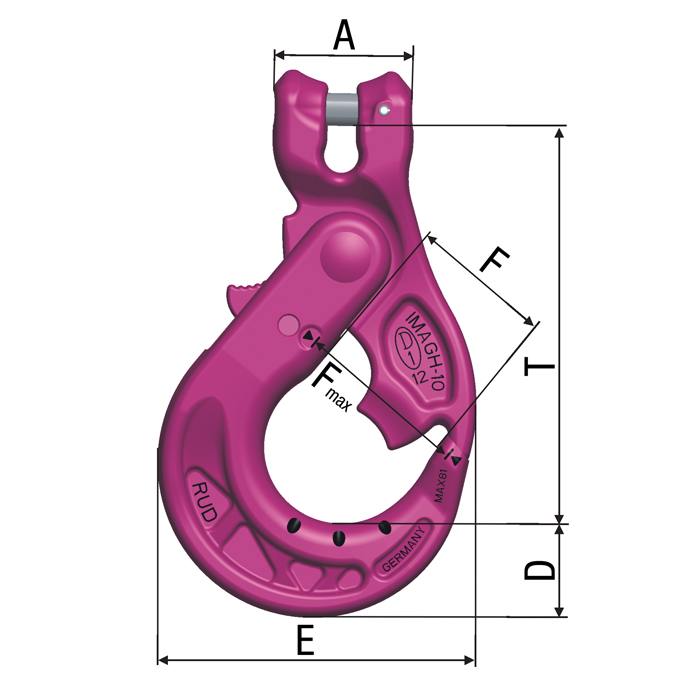

| A | 70 mm |
| D | 40 mm |
| E | 140 mm |
| F | 50 mm |
| T | 167 mm |
| F max | 81 mm |
| eClass 6.2 | 36123414 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162600 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162600 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| GTIN | 4008244314187 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162600 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |
