Up to 25% weight reduction compared to a grade 8 hook of the same capacity due to its groundbreaking skeletal design. The unmatched advantages of the VIP Cobra hook have been transferred and further enhanced. Mouth opening is the same like of the proven Granit super hook – of the next higher Nominal...
show more
Up to 25% weight reduction compared to a grade 8 hook of the same capacity due to its groundbreaking skeletal design. The unmatched advantages of the VIP Cobra hook have been transferred and further enhanced. Mouth opening is the same like of the proven Granit super hook – of the next higher Nominal chain size.
Standard: DIN EN 1677-2
| Working load limit | 800,00 kg |
| Max. operating temperature | 300,00 °C |
| Min. operating temperature | -60,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 12 |
| Nominal strength | 1.200,00 N/mm2 |
| Hook version | Load hook with safety latch |
| Safety latch version | Forged |
| Hook connection | Clevis |
| Clevis nominal size | 4 mm |
| Hook nominal size | 4 |
| Hook opening | 19,00 mm |
| RAL colour number | RAL 4006 Traffic Purple |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-2 |
| Product description | Clevis Hook |
| Brand | ICE |
| Type designation | ISH |

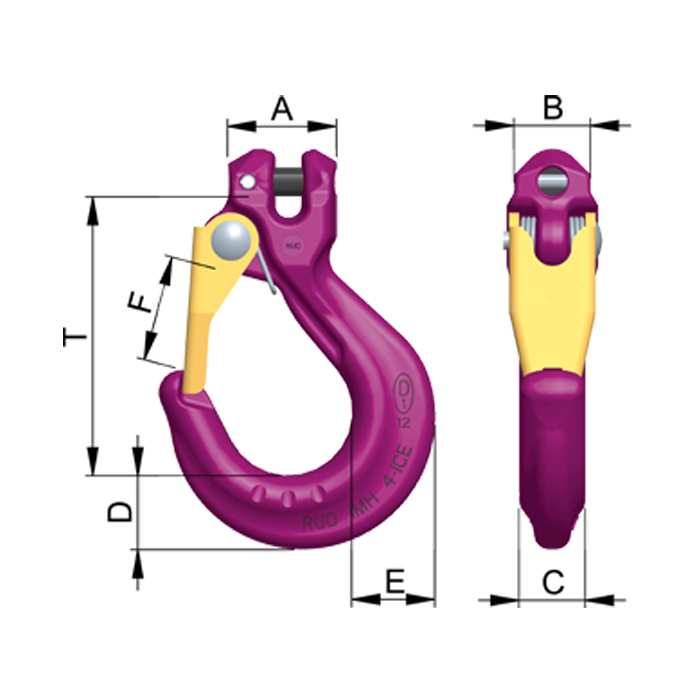

| A | 22 mm |
| B | 15 mm |
| C | 13 mm |
| D | 14.5 mm |
| E | 16.5 mm |
| F | 21 mm |
| T | 55 mm |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162600 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| GTIN | 4008244301880 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162600 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |
