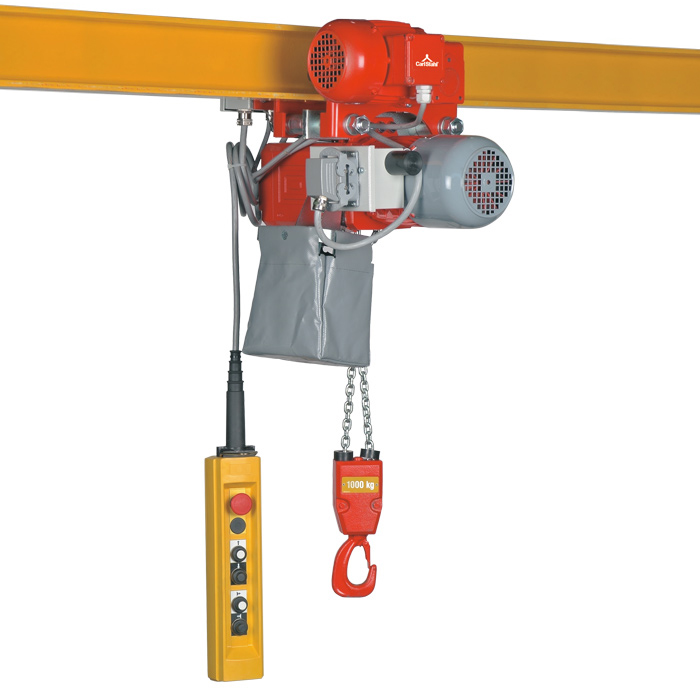

Small overall dimensions and low headroom due to compact construction. Helical gearing ensures high load capacity and low noise level at all speeds. All gear wheels are case-hardened and micro-finished. The disc brake reacts quickly and safely at lowest wear. The hoist is resistant against dust and weather due to its fully enclosed housing and a specially sealed brake. The low-wear load chain according to DIN EN 818 is surface-hardened and galvanised.
• Power supply: 400 VAC 50 Hz (other voltages on request)
• Up to 2,000 kg capacity also available for 230 VAC
• protected IP55
• insulation class F
• Standard lifting height is 3 m
Also available in explosionprotected version
