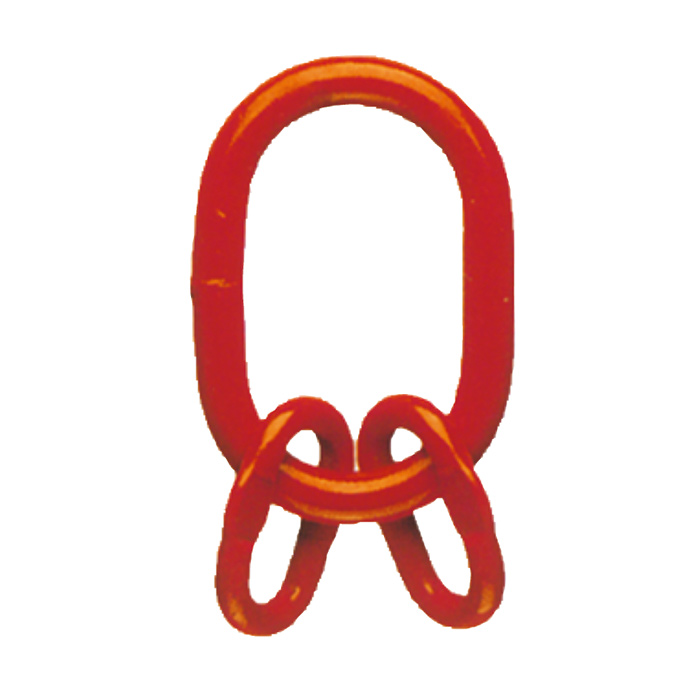

Master Link Assembly

• 3 parts • Grade 80, no flattened section • surface: red dipped • For 3- and 4-leg wire rope slings according to DIN EN 13414-1 • For 3- and 4-leg chain slings according to EN 818

 all variants
Price upon Request
payment options
E-MailWhatsapp
Working load limit3.150,00 kg
Inner Width75,00 mm
Inner Height135,00 mm
Material thickness18,00 mm
Material thickness con. link13,00 mm
Price upon Request
right arrow
Working load limit2.360,00 kg
Inner Width75,00 mm
Inner Height135,00 mm
Material thickness18,00 mm
Material thickness con. link13,00 mm
£25.22 / ST
right arrow
Working load limit4.250,00 kg
Inner Width90,00 mm
Inner Height160,00 mm
Material thickness22,00 mm
Material thickness con. link16,00 mm
£38.34 / ST
right arrow
Working load limit6.700,00 kg
Inner Width100,00 mm
Inner Height180,00 mm
Material thickness26,00 mm
Material thickness con. link18,00 mm
£49.35 / ST
right arrow
Working load limit11.200,00 kg
Inner Width110,00 mm
Inner Height200,00 mm
Material thickness32,00 mm
Material thickness con. link22,00 mm
£78.21 / ST
right arrow
Working load limit17.000,00 kg
Inner Width140,00 mm
Inner Height260,00 mm
Material thickness36,00 mm
Material thickness con. link26,00 mm
£118.93 / ST
right arrow
Working load limit21.200,00 kg
Inner Width180,00 mm
Inner Height340,00 mm
Material thickness45,00 mm
Material thickness con. link32,00 mm
£258.51 / ST
right arrow
Working load limit26.500,00 kg
Inner Width190,00 mm
Inner Height350,00 mm
Material thickness51,00 mm
Material thickness con. link32,00 mm
£352.72 / ST
right arrow
Working load limit31.500,00 kg
Inner Width190,00 mm
Inner Height350,00 mm
Material thickness51,00 mm
Material thickness con. link36,00 mm
£422.97 / ST
right arrow
Working load limit45.000,00 kg
Inner Width200,00 mm
Inner Height400,00 mm
Material thickness57,00 mm
Material thickness con. link40,00 mm
£751.31 / ST
right arrow
Working load limit67.000,00 kg
Inner Width250,00 mm
Inner Height460,00 mm
Material thickness70,00 mm
Material thickness con. link50,00 mm
£2,447.76 / ST
right arrow

Product description

• 3 parts
• Grade 80, no flattened section
• surface: red dipped
• For 3- and 4-leg wire rope slings according to DIN EN 13414-1
• For 3- and 4-leg chain slings according to EN 818
