Product description
• 3 parts
• Grade 80, no flattened section
• surface: red dipped
• For 3- and 4-leg wire rope slings according to DIN EN 13414-1
• For 3- and 4-leg chain slings according to EN 818
| Working load limit | 67.000,00 kg |
| Max. operating temperature | 400,00 °C |
| Min. operating temperature | -80,00 °C |
| Explosion protection | No |
| Material | Steel |
| Inner Width | 250,00 mm |
| Inner Height | 460,00 mm |
| Grade | Grade 8 |
| Nominal strength | 800,00 N/mm2 |
| Material thickness | 70,00 mm |
| Single link type | Suspension set |
| Mounting block | B-link |
| B-link inside width | 100,00 mm |
| B-link inside height | 200,00 mm |
| Material thickness con. link | 50,00 mm |
| Colour | red |
| RAL colour no. | RAL 3000 Flame Red |
| Surface treatment | Lacquered |
| Standard | DIN EN 1677-4 |
| Product description | Suspension fitting |
| Brand | Cartec80 |
| Type designation | CMC |
| Manufacturer part number | CMC32H |
| eClass 6.2 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 24101600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 241016 |

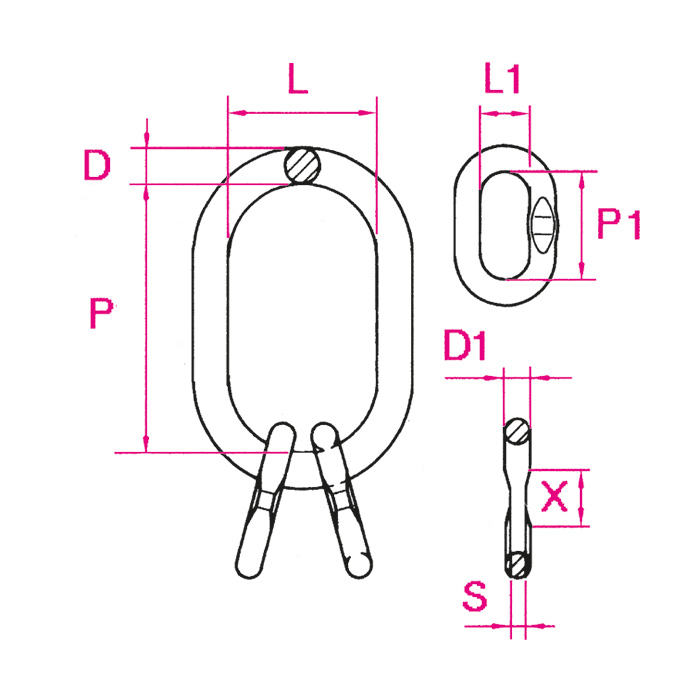

| D | 70 mm |
| D1 | 50 mm |
| L | 250 mm |
| L1 | 100 mm |
| P | 460 mm |
| P1 | 200 mm |
