Product description
Product advantages:

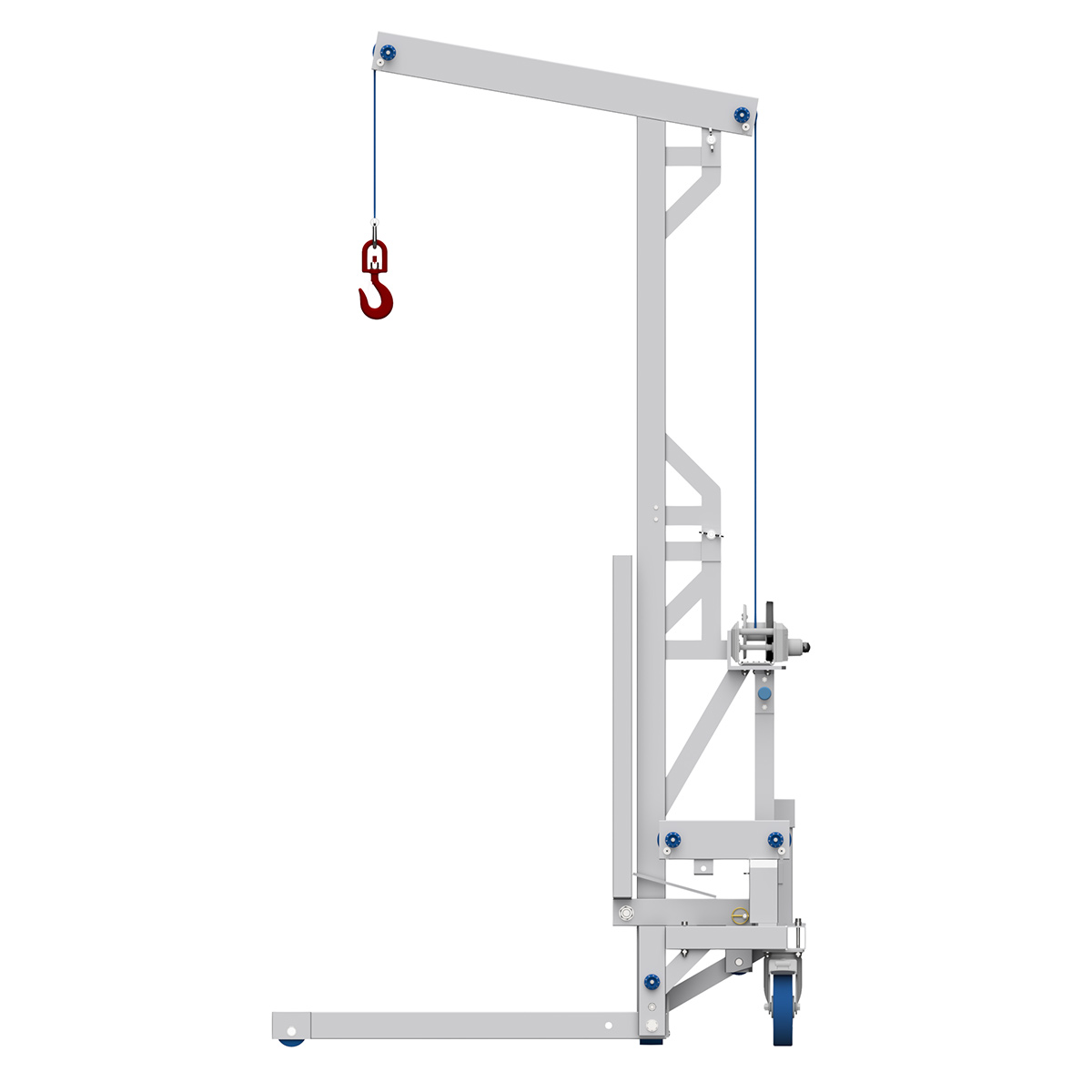

- The aluminum workshop crane was developed especially for companies that need a mobile lifting device.
- It can also be transported effortlessly in a delivery truck.
- The mast is divisible.
- When used without an extension mast, the height ratios are reduced by height ratios are reduced by 1000 mm.
- The lifting fork is height adjustable under load.
- The product can be moved individually and can be turned almost "on the spot".
- The aluminum workshop crane can be completely
folded and stored in a space-saving manner.
- It can be driven into a Euro flat pallet as well as into a mesh box.
Technical details:
- Load capacity 250 kg
- Design without counterweight
- Dead weight 70 kg
Scope of delivery:
- inclusive outrigger arm
- including lifting fork
- with winch including foldable handle
- Lifting fork height 95 mm (dimension floor to top of lifting fork)
- width of driving fork 560 mm
- with 2 sheet steel swivel castors, wheel diameter 200 mm, with heavy-duty polyurethane tread, with wheel and turntable lock. These wheels are mounted on the base frame.
- with 2 pcs. guide roller or fork wheel made of high quality plastic, diameter 80 mm. These wheels are mounted on the driving fork.
- with safety load hook with swivel (can be rotated 360° under load).
- dimensions when folded: 496 x 750 x 1.300 mm
