| Working load limit | 6.000,00 kg |
| Max. operating temperature | 200,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 8 |
| Nominal strength | 800,00 N/mm2 |
| Hook version | Load hook with safety latch |
| Safety latch version | Forged |
| Hook nominal size | 14,00 |
| Hook opening | 44,00 mm |
| Colour | brown |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-2 |

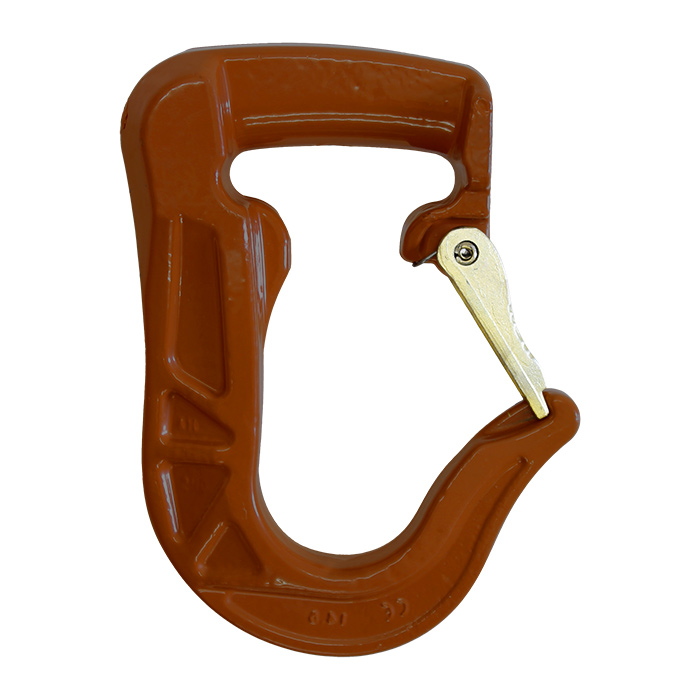

| Product description | Joker Hook |
| Brand | JokerHaken |
| Type designation | ASH |
| Manufacturer part number | D061786 |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 21071207 |
| eClass 4.1 | 21071207 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162604 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162604 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162604 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |
| A | 155 mm |
| B1 | 48 mm |
| B2 | 60 mm |
| F | 60 mm |
| G | 35 mm |
| H | 35 mm |
| L | 215 mm |
A double use hook - Joker hooks are the ideal addition to your round slings and lifting straps. After all, they are real multi-talents: they can either be used to extend slings or as end hooks that ensure a secure hold at slinging points. In combination with one or more round slings, an RS hanger is created in a very short time.
• easy handling
• turns round slings into round sling hangers
• ideal connection between two slings
