| Working load limit | 3.000,00 kg |
| Max. operating temperature | 200,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 10 |
| Nominal strength | 1.370,00 N/mm2 |
| Hook version | Load hook with safety latch |
| Safety latch version | Forged |
| Hook opening | 36,00 mm |
| Colour | yellow |
| Surface treatment | Epoxy coated |
| Standard | DIN EN 1677-2 |
| Product description | Joker Hook |
| Brand | JokerHaken |
| Type designation | ASH |
| Manufacturer part number | D049733 |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 21071207 |
| eClass 4.1 | 21071207 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162604 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162604 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| GTIN | 7610726102266 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162604 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |
| A | 125 mm |
| A2 | 93 mm |
| B1 | 36 mm |
| B2 | 39 mm |
| E | 55 mm |
| E2 | 13 mm |
| F | 47 mm |
| G | 26 mm |
| H | 27 mm |
| L | 172 mm |
| L1 | 121 mm |
| M | 15 mm |
| R | 15 mm |

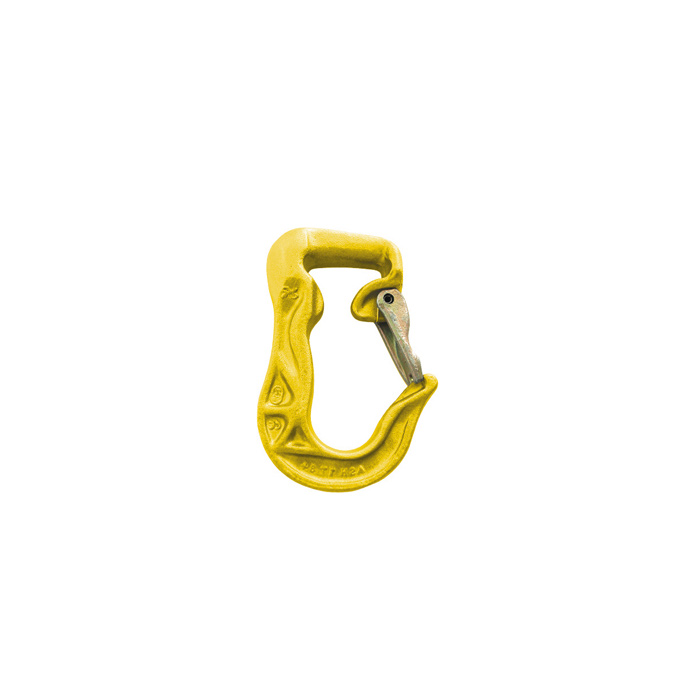

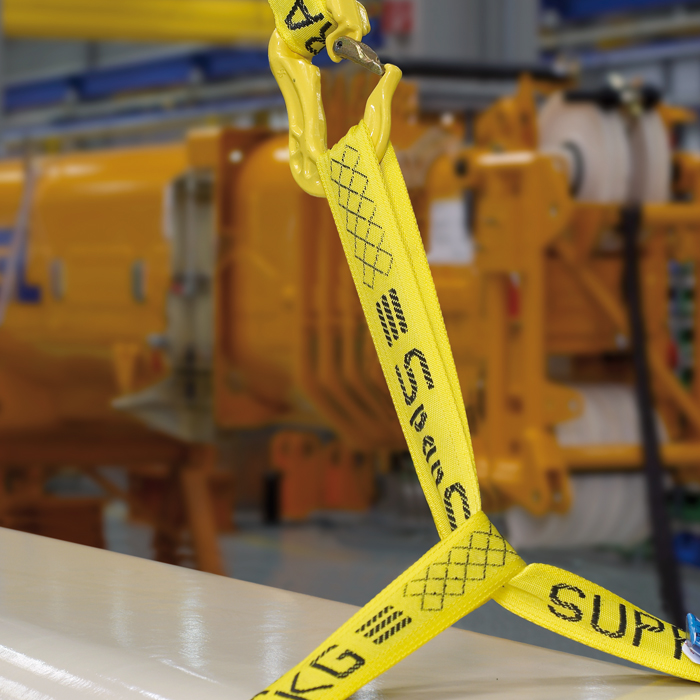

A double use hook - Joker hooks are the ideal addition to your round slings and lifting straps. After all, they are real multi-talents: they can either be used to extend slings or as end hooks that ensure a secure hold at slinging points. In combination with one or more round slings, an RS hanger is created in a very short time.
• easy handling
• turns round slings into round sling hangers
• ideal connection between two slings
