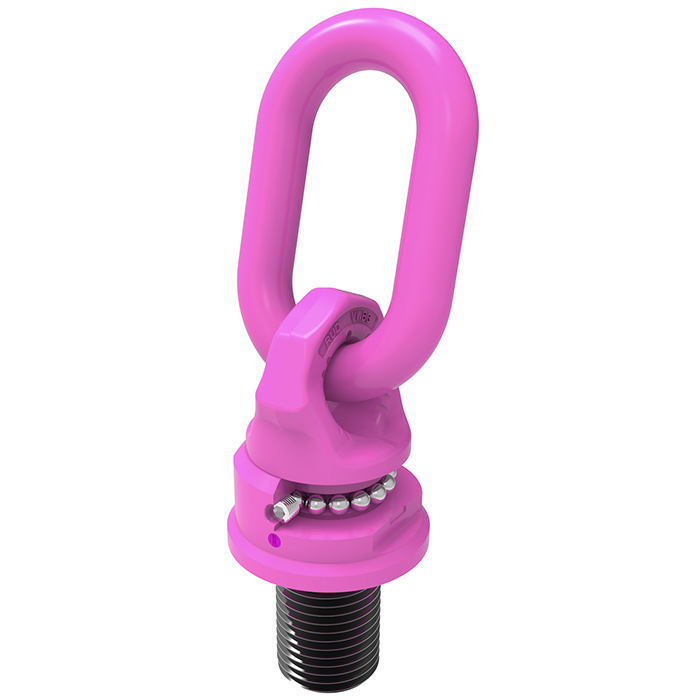

Lifting ring VWBG with ball bearing

For rotating and turning heavy loads • Equipped with ball bearing, 360° rotation ander load • Can be loaded in all directions with a safety factor of 4. • Oblong ring manufactured acc. to DIN EN 1677-4 grade 80 (100% crack-tested and proofloaded) • Wear marks for the most common directions of pull:...

show more
 all variants
Price upon Request
payment options
E-MailWhatsapp
Perm. load capacity 90°31.500,00 kg
Type designationVWBG
Working load limit31.500,00 kg
Thread SizeM72
Usable bolt length108,00 mm
$3,768.21 / ST
right arrow
Perm. load capacity 90°35.000,00 kg
Type designationVWBG
Working load limit35.000,00 kg
Thread SizeM80
Usable bolt length120,00 mm
$3,800.58 / ST
right arrow
Perm. load capacity 90°12.000,00 kg
Type designationVWBG
Working load limit12.000,00 kg
Thread SizeM42
Usable bolt length63,00 mm
$589.00 / ST
right arrow
Perm. load capacity 90°16.000,00 kg
Type designationVWBG
Working load limit16.000,00 kg
Thread SizeM64
Usable bolt length94,00 mm
$936.61 / ST
right arrow
Perm. load capacity 90°12.000,00 kg
Type designationVWBG
Working load limit12.000,00 kg
Thread SizeM45
Usable bolt length67,00 mm
$714.19 / ST
right arrow
Perm. load capacity 90°40.000,00 kg
Type designationVWBG
Working load limit40.000,00 kg
Thread SizeM90
Usable bolt length135,00 mm
$4,101.72 / ST
right arrow
Perm. load capacity 90°8.000,00 kg
Type designationVWBG
Working load limit8.000,00 kg
Thread SizeM36
Usable bolt length54,00 mm
$539.51 / ST
right arrow
Perm. load capacity 90°13.000,00 kg
Type designationVWBG
Working load limit13.000,00 kg
Thread SizeM48
Usable bolt length68,00 mm
$653.63 / ST
right arrow
Perm. load capacity 90°16.000,00 kg
Type designationVWBG
Working load limit16.000,00 kg
Thread SizeM56
Usable bolt length84,00 mm
$790.11 / ST
right arrow
Perm. load capacity 90°14.000,00 kg
Type designationVWBG
Working load limit14.000,00 kg
Thread SizeM52
Usable bolt length78,00 mm
$714.19 / ST
right arrow

Product description

For rotating and turning heavy loads
• Equipped with ball bearing, 360° rotation ander load
• Can be loaded in all directions with a safety factor of 4.
• Oblong ring manufactured acc. to DIN EN 1677-4 grade 80
(100% crack-tested and proofloaded)
• Wear marks for the most common directions of pull: 45°, 60° and 90°

Technical Data & Downloads

Select a product above to view additional specifications, documents, dimensions, and classification standards for this article.
