Produktbeskrivning

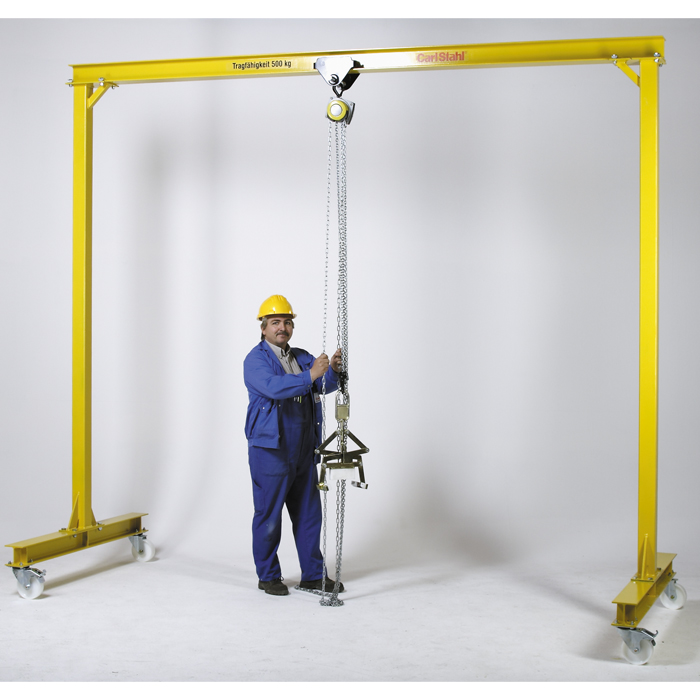

The full gantry crane used indoors or outdoors is very versatile. It is easy and quick to install. The clear gantry width is variable due to the Lindapter clamp.
Load capacities from 50 kg to 5,000 kg and portal widths from 2 m to 6 m are available. BGV D6 must be observed when installing on site.
Notes on the roles:
• Polyamide flooring, standard use from 50kg to 5,000kg for smooth industrial floors
• Solid rubber tyres can be used up to max. 1,000kg for coarse, uneven floors (above that Vullkollan is much cheaper)
• Vullkollan tyres can be used up to 3,200kg, for slightly uneven industrial floors (stones, holes, edges)
Scope of delivery:
• Crane without hoist, power supply and clamping buffer
• Lacquering in RAL 1004 (golden yellow), other lacquering on request
• Running gear: 4 steering wheels as standard, 2additional wheels with wheel stop
• Wheel coating standard polyamide, others on request
