| WLL | 1.600,00 kg |
| Max. temperatur | 80,00 °C |
| Min. temperatur | -10,00 °C |
| Driftspänning | 400,00 V |
| Lyftriktning | horisontell |
| Typ av last | Series parts, cuttings |
| Standard | EN13155, MRL 2006/42EWG |
| Max. lastväxling | 16 000 lastcykler |
| Produktbeskrivning | Elektrisk permanentmagnet |
| Tillverkare | Flaig TE Magnetsysteme |
| Typbeteckning | FXE-1600/50 |
| eClass 6.2 | 36123405 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123405 |
| UNSPSC V7 | 24101658 |
| eClass 8.0 | 36123405 |
| UNSPSC V13.5 | 24101658 |
| eClass 5.1.1 | 36129205 |
| eClass 5.1 | 36129205 |
| eClass 9.0 | 36123405 |
| eClass 10.0.1 | 36123405 |
| eClass 10.1 | 36123405 |
| UNSPSC V20.0601 | 24101658 |
| eClass 5.1.4 | 36129205 |
| UNSPSC V13.5_S | 241016 |

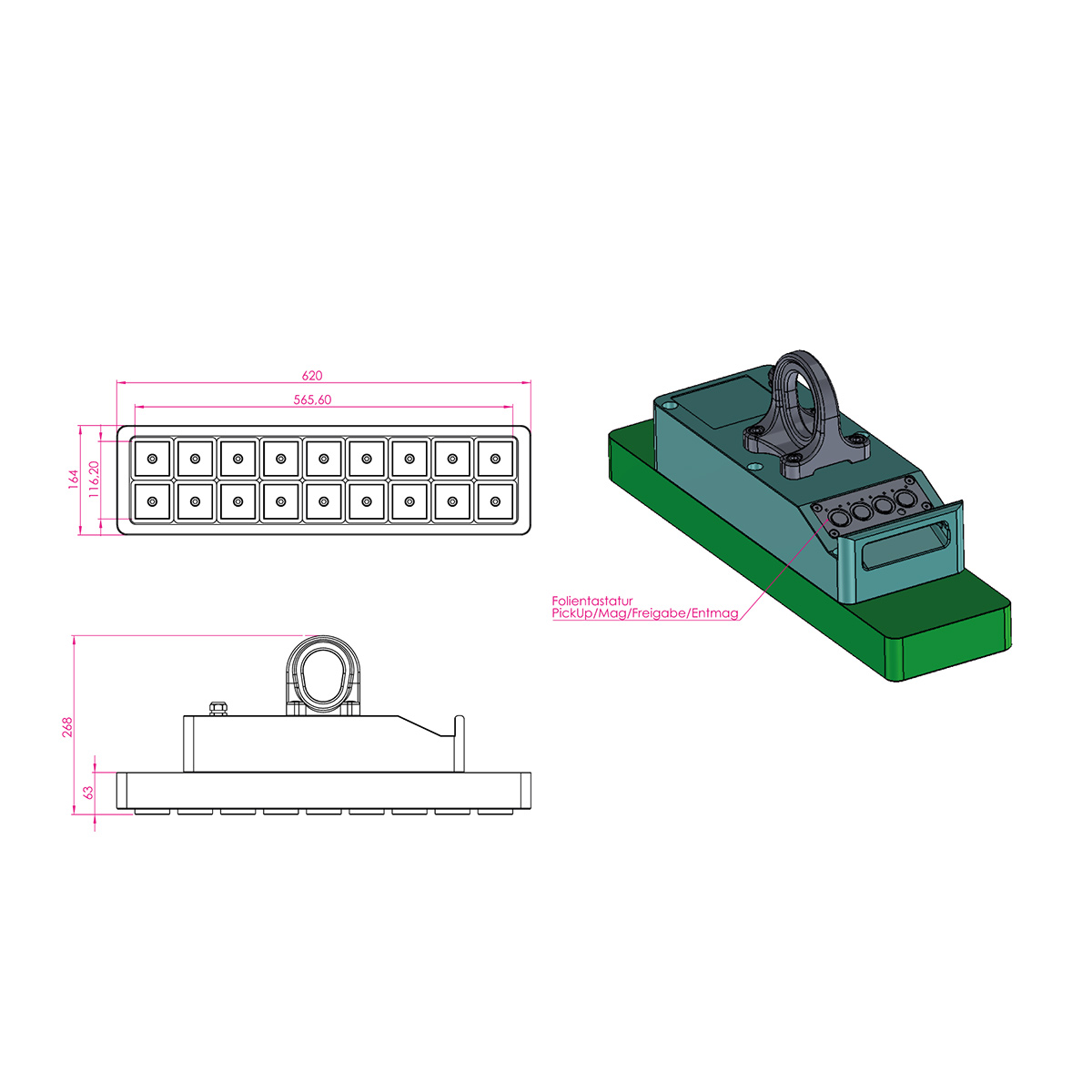

Equipped with pole type 50 and a maximum load capacity of 750/1100/1600 kg, which is achieved with material thicknesses from 15 mm, these devices, which are easy to guide and operate, are recommended for lifting for lifting sheet metal, laser and flame cut parts, tools and blanks with small air gaps.
