| WLL | 6.400,00 kg |
| Max. temperatur | 80,00 °C |
| Min. temperatur | -10,00 °C |
| Explosionsskydd finns | Nej |
| Yta | Pulverlackerad |
| Lyftriktning | horisontell |
| Typ av last | Platt material |
| Standard | EN13155, MRL 2006/42EWG |
| Max. lastväxling | 16 000 lastcykler |
| Produktbeskrivning | Lyftmagnet korsbalk |
| Tillverkare | Flaig TE Magnetsysteme |
| Typbeteckning | FXE-T6400/8 |
| eClass 6.2 | 36123405 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123405 |
| UNSPSC V7 | 24101658 |
| eClass 8.0 | 36123405 |
| UNSPSC V13.5 | 24101658 |
| eClass 5.1.1 | 36129205 |
| eClass 5.1 | 36129205 |
| eClass 9.0 | 36123405 |
| eClass 10.0.1 | 36123405 |
| eClass 10.1 | 36123405 |
| UNSPSC V20.0601 | 24101658 |
| eClass 5.1.4 | 36129205 |
| UNSPSC V13.5_S | 241016 |

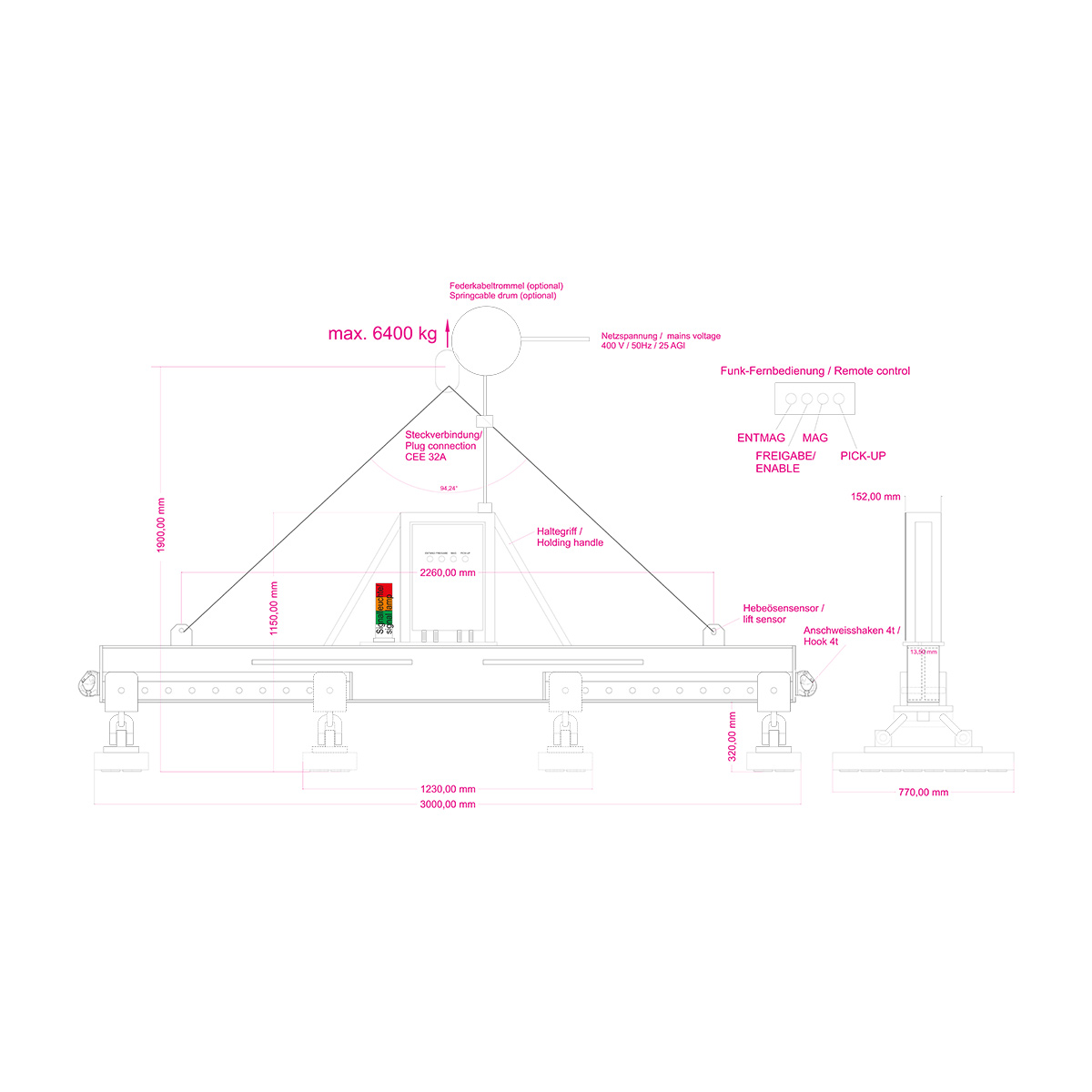

The FXE-T 6400/80 Electric Permanent Lifting Magnetic Traverse
is a fully equipped standard unit with all options. The load lifting beam with 6400 kg max. lifting capacity is equipped with movable magnetic modules and can thus safely move sheet metal formats from min. 1200 mm length to max. 6000 mm length safely.
