| WLL | 4.000,00 kg |
| Max. temperatur | 80,00 °C |
| Min. temperatur | -10,00 °C |
| Driftspänning | 400,00 V |
| Lyftriktning | horisontell |
| Typ av last | Series parts, cuttings |
| Standard | EN13155, MRL 2006/42EWG |
| Max. lastväxling | 16 000 lastcykler |
| Produktbeskrivning | Elektromagnet |
| Tillverkare | Flaig TE Magnetsysteme |
| Typbeteckning | FXE-4000/80 |
| eClass 6.2 | 36123405 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123405 |
| UNSPSC V7 | 24101658 |
| eClass 8.0 | 36123405 |
| UNSPSC V13.5 | 24101658 |
| eClass 5.1.1 | 36129205 |
| eClass 5.1 | 36129205 |
| eClass 9.0 | 36123405 |
| eClass 10.0.1 | 36123405 |
| eClass 10.1 | 36123405 |
| UNSPSC V20.0601 | 24101658 |
| eClass 5.1.4 | 36129205 |
| UNSPSC V13.5_S | 241016 |

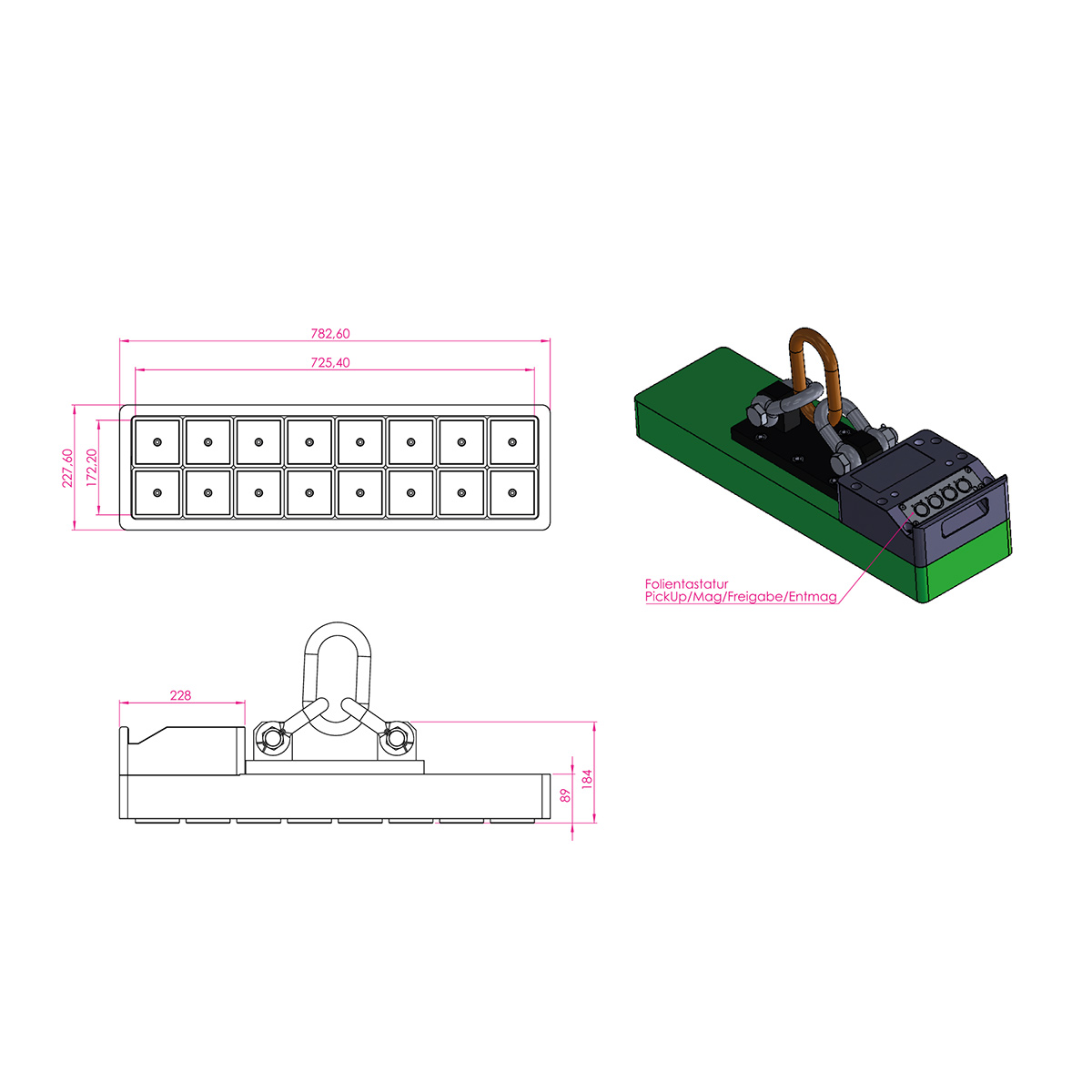

Equipped with pole type 80 and a maximum load capacity of 4000 kg, which is reached with material thicknesses starting from 25 mm, recommends
easy to guide and operate, these devices are recommended for lifting
heavy plates, plasma and flame-cut parts, tools and blanks. The control and operating unit, which is offset to the outside, makes it easier to clear the torch and machine tables.
