| WLL | 150,00 kg |
| Max. temperatur | 80,00 °C |
| Min. temperatur | -10,00 °C |
| Explosionsskydd finns | Nej |
| Driftspänning | 400,00 V |
| Yta | delvis lackerad/nickelpläterad |
| Lyftriktning | horisontell |
| Typ av last | Series parts, cuttings |
| Standard | EN13155, MRL 2006/42EWG |
| Max. lastväxling | 16 000 lastcykler |
| Produktbeskrivning | Elektrisk permanentmagnet |
| Tillverkare | Flaig TE Magnetsysteme |

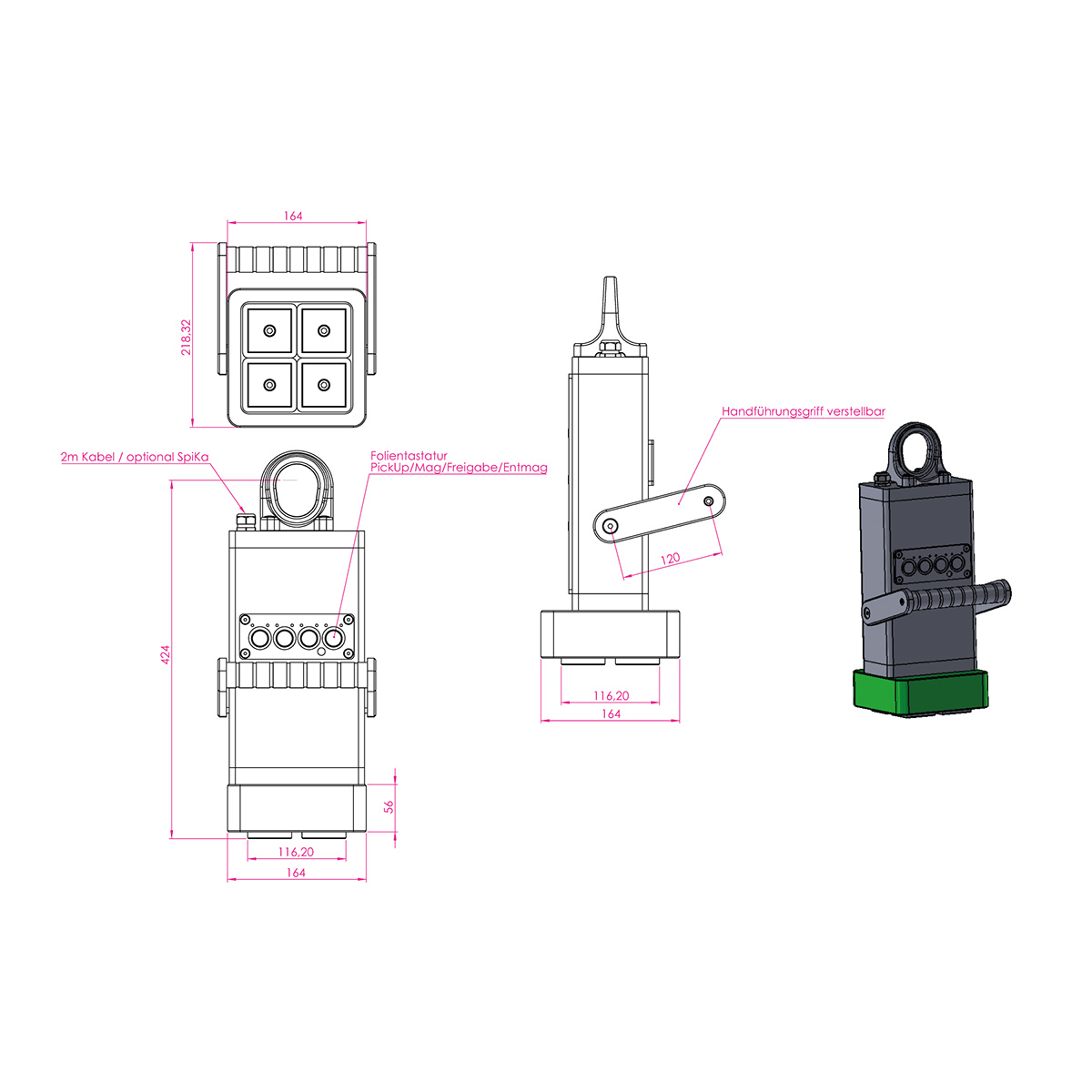

| Typbeteckning | FXE-500/50 |
| eClass 6.2 | 36123405 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123405 |
| UNSPSC V7 | 24101658 |
| eClass 8.0 | 36123405 |
| UNSPSC V13.5 | 24101658 |
| eClass 5.1.1 | 36129205 |
| eClass 5.1 | 36129205 |
| eClass 9.0 | 36123405 |
| eClass 10.0.1 | 36123405 |
| eClass 10.1 | 36123405 |
| UNSPSC V20.0601 | 24101658 |
| eClass 5.1.4 | 36129205 |
| UNSPSC V13.5_S | 241016 |
Equipped with pole type 50 and a maximum load capacity of
300/500 kg, which is achieved with material thicknesses from 15 mm, and with
small magnetically active surfaces, these easy-to-guide and easy-to-operate
easy to guide and operate for lifting serial parts,
blanks and small castings and forgings.
