ICE Master Link 4-Leg

ICE suspension head 4 strand, with captive welded-in ring fork Type IAK-RG-4 for standard load hook ICE 4 strand suspension head with four welded ICE ring forks movable on all sides, thus forced connection for diameter chain and number of strains. ICE connecting bolt and safety pin are pre-assembled...

show more
 all variants
Price upon Request
payment options
E-MailWhatsapp
140,00 mm
260,00 mm
10.600,00 kg
7.500,00 kg
Nr. 16
£507.58 / ST right arrow
250,00 mm
460,00 mm
26.500,00 kg
19.000,00 kg
Nr. 50
£1,383.29 / ST right arrow
250,00 mm
460,00 mm
17.000,00 kg
11.800,00 kg
Nr. 50
£774.45 / ST right arrow
250,00 mm
460,00 mm
10.600,00 kg
7.500,00 kg
Nr. 50
£612.07 / ST right arrow
250,00 mm
460,00 mm
6.300,00 kg
4.500,00 kg
Nr. 50
£511.15 / ST right arrow
190,00 mm
350,00 mm
17.000,00 kg
11.800,00 kg
Nr. 32
£706.46 / ST right arrow
190,00 mm
350,00 mm
10.600,00 kg
7.500,00 kg
Nr. 32
£566.40 / ST right arrow
190,00 mm
350,00 mm
6.300,00 kg
4.500,00 kg
Nr. 32
£431.36 / ST right arrow
190,00 mm
350,00 mm
3.750,00 kg
2.700,00 kg
Nr. 32
£363.20 / ST right arrow
35,00 mm
60,00 mm
1.700,00 kg
1.180,00 kg
£89.97 / ST right arrow
140,00 mm
260,00 mm
6.300,00 kg
4.500,00 kg
Nr. 16
£365.75 / ST right arrow
140,00 mm
260,00 mm
3.750,00 kg
2.700,00 kg
Nr. 16
£327.64 / ST right arrow
190,00 mm
350,00 mm
26.500,00 kg
19.000,00 kg
Nr. 32
£933.68 / ST right arrow
140,00 mm
260,00 mm
17.000,00 kg
11.800,00 kg
Nr. 16
£623.87 / ST right arrow
110,00 mm
200,00 mm
10.600,00 kg
7.500,00 kg
Nr. 10
£457.16 / ST right arrow
100,00 mm
180,00 mm
6.300,00 kg
4.500,00 kg
Nr. 8
£319.57 / ST right arrow
90,00 mm
160,00 mm
3.750,00 kg
2.700,00 kg
Nr. 6
£268.48 / ST right arrow
Inner Width140,00 mm
Inner Height260,00 mm
WLL under angle 0° - 45°10.600,00 kg
WLL under angle 45°- 60°7.500,00 kg
Suitable for Hook SizeNr. 16
£507.58 / ST
right arrow
Inner Width250,00 mm
Inner Height460,00 mm
WLL under angle 0° - 45°26.500,00 kg
WLL under angle 45°- 60°19.000,00 kg
Suitable for Hook SizeNr. 50
£1,383.29 / ST
right arrow
Inner Width250,00 mm
Inner Height460,00 mm
WLL under angle 0° - 45°17.000,00 kg
WLL under angle 45°- 60°11.800,00 kg
Suitable for Hook SizeNr. 50
£774.45 / ST
right arrow
Inner Width250,00 mm
Inner Height460,00 mm
WLL under angle 0° - 45°10.600,00 kg
WLL under angle 45°- 60°7.500,00 kg
Suitable for Hook SizeNr. 50
£612.07 / ST
right arrow
Inner Width250,00 mm
Inner Height460,00 mm
WLL under angle 0° - 45°6.300,00 kg
WLL under angle 45°- 60°4.500,00 kg
Suitable for Hook SizeNr. 50
£511.15 / ST
right arrow
Inner Width190,00 mm
Inner Height350,00 mm
WLL under angle 0° - 45°17.000,00 kg
WLL under angle 45°- 60°11.800,00 kg
Suitable for Hook SizeNr. 32
£706.46 / ST
right arrow
Inner Width190,00 mm
Inner Height350,00 mm
WLL under angle 0° - 45°10.600,00 kg
WLL under angle 45°- 60°7.500,00 kg
Suitable for Hook SizeNr. 32
£566.40 / ST
right arrow
Inner Width190,00 mm
Inner Height350,00 mm
WLL under angle 0° - 45°6.300,00 kg
WLL under angle 45°- 60°4.500,00 kg
Suitable for Hook SizeNr. 32
£431.36 / ST
right arrow
Inner Width190,00 mm
Inner Height350,00 mm
WLL under angle 0° - 45°3.750,00 kg
WLL under angle 45°- 60°2.700,00 kg
Suitable for Hook SizeNr. 32
£363.20 / ST
right arrow
Inner Width35,00 mm
Inner Height60,00 mm
WLL under angle 0° - 45°1.700,00 kg
WLL under angle 45°- 60°1.180,00 kg
Suitable for Hook Size
£89.97 / ST
right arrow
Inner Width140,00 mm
Inner Height260,00 mm
WLL under angle 0° - 45°6.300,00 kg
WLL under angle 45°- 60°4.500,00 kg
Suitable for Hook SizeNr. 16
£365.75 / ST
right arrow
Inner Width140,00 mm
Inner Height260,00 mm
WLL under angle 0° - 45°3.750,00 kg
WLL under angle 45°- 60°2.700,00 kg
Suitable for Hook SizeNr. 16
£327.64 / ST
right arrow
Inner Width190,00 mm
Inner Height350,00 mm
WLL under angle 0° - 45°26.500,00 kg
WLL under angle 45°- 60°19.000,00 kg
Suitable for Hook SizeNr. 32
£933.68 / ST
right arrow
Inner Width140,00 mm
Inner Height260,00 mm
WLL under angle 0° - 45°17.000,00 kg
WLL under angle 45°- 60°11.800,00 kg
Suitable for Hook SizeNr. 16
£623.87 / ST
right arrow
Inner Width110,00 mm
Inner Height200,00 mm
WLL under angle 0° - 45°10.600,00 kg
WLL under angle 45°- 60°7.500,00 kg
Suitable for Hook SizeNr. 10
£457.16 / ST
right arrow
Inner Width100,00 mm
Inner Height180,00 mm
WLL under angle 0° - 45°6.300,00 kg
WLL under angle 45°- 60°4.500,00 kg
Suitable for Hook SizeNr. 8
£319.57 / ST
right arrow
Inner Width90,00 mm
Inner Height160,00 mm
WLL under angle 0° - 45°3.750,00 kg
WLL under angle 45°- 60°2.700,00 kg
Suitable for Hook SizeNr. 6
£268.48 / ST
right arrow

Product description

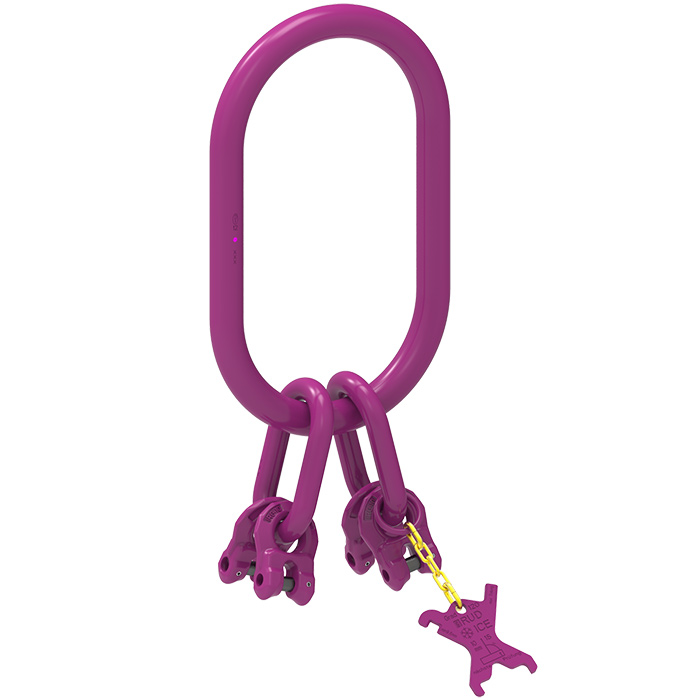

ICE suspension head 4 strand, with captive welded-in ring fork

Type IAK-RG-4 for standard load hook

ICE 4 strand suspension head with four welded ICE ring forks movable on all sides, thus forced connection for diameter chain and number of strains.

ICE connecting bolt and safety pin are pre-assembled. With movably connected complete 4-strand identification tag with integrated chain check gauge.

Surface: ICE pink powder-coated. Dimensions according to suspension link Form A according to DIN 5688, but one nominal thickness larger. Manufactured according to DIN EN 1677-4.
