ICE Master Link 1-Leg

ICE suspension head 1 strand, with captive welded-in ring fork Type IAK-RG-1 for standard load hook Type IBK-RG-1 for smaller load hooks ICE single-strand suspension head with welded ICE ring fork movable on all sides, thus forced connection for diameter chain and number of strands. ICE connecting b...

show more
 all variants
Price upon Request
payment options
E-MailWhatsapp
1.800,00 kg
140,00 mm
260,00 mm
18,00 mm
Nr. 16
£203.40 / ST right arrow
12.500,00 kg
250,00 mm
460,00 mm
40,00 mm
Nr. 50
£839.26 / ST right arrow
8.000,00 kg
250,00 mm
460,00 mm
36,00 mm
Nr. 50
£525.73 / ST right arrow
5.000,00 kg
250,00 mm
460,00 mm
36,00 mm
Nr. 50
£446.84 / ST right arrow
3.000,00 kg
250,00 mm
460,00 mm
36,00 mm
Nr. 50
£375.99 / ST right arrow
8.000,00 kg
190,00 mm
350,00 mm
36,00 mm
Nr. 32
£480.78 / ST right arrow
5.000,00 kg
190,00 mm
350,00 mm
32,00 mm
Nr. 32
£350.35 / ST right arrow
3.000,00 kg
190,00 mm
350,00 mm
26,00 mm
Nr. 32
£246.91 / ST right arrow
1.800,00 kg
190,00 mm
350,00 mm
22,00 mm
Nr. 32
£232.10 / ST right arrow
8.000,00 kg
140,00 mm
260,00 mm
32,00 mm
Nr. 16
£413.32 / ST right arrow
5.000,00 kg
140,00 mm
260,00 mm
26,00 mm
Nr. 16
£290.42 / ST right arrow
3.000,00 kg
140,00 mm
260,00 mm
22,00 mm
Nr. 16
£217.20 / ST right arrow
1.800,00 kg
34,00 mm
70,00 mm
13,50 mm
Nr. 08
£91.92 / ST right arrow
12.500,00 kg
140,00 mm
260,00 mm
32,00 mm
Nr. 16
£307.43 / ST right arrow
8.000,00 kg
100,00 mm
180,00 mm
26,00 mm
Nr. 8
£175.22 / ST right arrow
5.000,00 kg
90,00 mm
160,00 mm
22,00 mm
Nr. 6
£132.05 / ST right arrow
3.000,00 kg
75,00 mm
135,00 mm
16,50 mm
Nr. 5
£108.01 / ST right arrow
1.800,00 kg
60,00 mm
110,00 mm
13,50 mm
Nr. 2,5
£93.36 / ST right arrow
800,00 kg
34,00 mm
45,00 mm
13,00 mm
Nr. 04
£49.94 / ST right arrow
12.500,00 kg
75,00 mm
170,00 mm
32,00 mm
Nr. 5
£300.57 / ST right arrow
8.000,00 kg
65,00 mm
140,00 mm
26,00 mm
Nr. 2,5
£171.49 / ST right arrow
5.000,00 kg
50,00 mm
115,00 mm
22,00 mm
Nr. 1,6
£129.51 / ST right arrow
3.000,00 kg
40,00 mm
85,00 mm
18,00 mm
Nr. 1
£101.91 / ST right arrow
Working load limit1.800,00 kg
Inner Width140,00 mm
Inner Height260,00 mm
Material thickness18,00 mm
Suitable for Hook SizeNr. 16
£203.40 / ST
right arrow
Working load limit12.500,00 kg
Inner Width250,00 mm
Inner Height460,00 mm
Material thickness40,00 mm
Suitable for Hook SizeNr. 50
£839.26 / ST
right arrow
Working load limit8.000,00 kg
Inner Width250,00 mm
Inner Height460,00 mm
Material thickness36,00 mm
Suitable for Hook SizeNr. 50
£525.73 / ST
right arrow
Working load limit5.000,00 kg
Inner Width250,00 mm
Inner Height460,00 mm
Material thickness36,00 mm
Suitable for Hook SizeNr. 50
£446.84 / ST
right arrow
Working load limit3.000,00 kg
Inner Width250,00 mm
Inner Height460,00 mm
Material thickness36,00 mm
Suitable for Hook SizeNr. 50
£375.99 / ST
right arrow
Working load limit8.000,00 kg
Inner Width190,00 mm
Inner Height350,00 mm
Material thickness36,00 mm
Suitable for Hook SizeNr. 32
£480.78 / ST
right arrow
Working load limit5.000,00 kg
Inner Width190,00 mm
Inner Height350,00 mm
Material thickness32,00 mm
Suitable for Hook SizeNr. 32
£350.35 / ST
right arrow
Working load limit3.000,00 kg
Inner Width190,00 mm
Inner Height350,00 mm
Material thickness26,00 mm
Suitable for Hook SizeNr. 32
£246.91 / ST
right arrow
Working load limit1.800,00 kg
Inner Width190,00 mm
Inner Height350,00 mm
Material thickness22,00 mm
Suitable for Hook SizeNr. 32
£232.10 / ST
right arrow
Working load limit8.000,00 kg
Inner Width140,00 mm
Inner Height260,00 mm
Material thickness32,00 mm
Suitable for Hook SizeNr. 16
£413.32 / ST
right arrow
Working load limit5.000,00 kg
Inner Width140,00 mm
Inner Height260,00 mm
Material thickness26,00 mm
Suitable for Hook SizeNr. 16
£290.42 / ST
right arrow
Working load limit3.000,00 kg
Inner Width140,00 mm
Inner Height260,00 mm
Material thickness22,00 mm
Suitable for Hook SizeNr. 16
£217.20 / ST
right arrow
Working load limit1.800,00 kg
Inner Width34,00 mm
Inner Height70,00 mm
Material thickness13,50 mm
Suitable for Hook SizeNr. 08
£91.92 / ST
right arrow
Working load limit12.500,00 kg
Inner Width140,00 mm
Inner Height260,00 mm
Material thickness32,00 mm
Suitable for Hook SizeNr. 16
£307.43 / ST
right arrow
Working load limit8.000,00 kg
Inner Width100,00 mm
Inner Height180,00 mm
Material thickness26,00 mm
Suitable for Hook SizeNr. 8
£175.22 / ST
right arrow
Working load limit5.000,00 kg
Inner Width90,00 mm
Inner Height160,00 mm
Material thickness22,00 mm
Suitable for Hook SizeNr. 6
£132.05 / ST
right arrow
Working load limit3.000,00 kg
Inner Width75,00 mm
Inner Height135,00 mm
Material thickness16,50 mm
Suitable for Hook SizeNr. 5
£108.01 / ST
right arrow
Working load limit1.800,00 kg
Inner Width60,00 mm
Inner Height110,00 mm
Material thickness13,50 mm
Suitable for Hook SizeNr. 2,5
£93.36 / ST
right arrow
Working load limit800,00 kg
Inner Width34,00 mm
Inner Height45,00 mm
Material thickness13,00 mm
Suitable for Hook SizeNr. 04
£49.94 / ST
right arrow
Working load limit12.500,00 kg
Inner Width75,00 mm
Inner Height170,00 mm
Material thickness32,00 mm
Suitable for Hook SizeNr. 5
£300.57 / ST
right arrow
Working load limit8.000,00 kg
Inner Width65,00 mm
Inner Height140,00 mm
Material thickness26,00 mm
Suitable for Hook SizeNr. 2,5
£171.49 / ST
right arrow
Working load limit5.000,00 kg
Inner Width50,00 mm
Inner Height115,00 mm
Material thickness22,00 mm
Suitable for Hook SizeNr. 1,6
£129.51 / ST
right arrow
Working load limit3.000,00 kg
Inner Width40,00 mm
Inner Height85,00 mm
Material thickness18,00 mm
Suitable for Hook SizeNr. 1
£101.91 / ST
right arrow

Product description

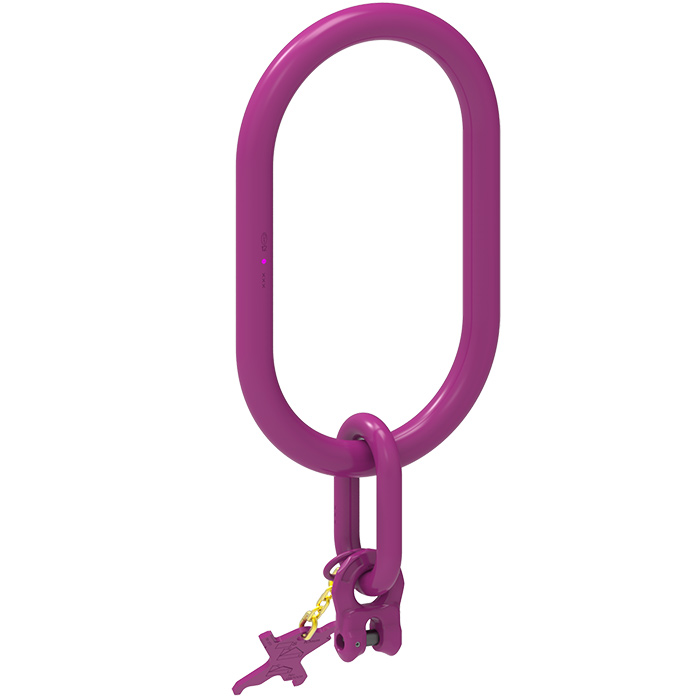

ICE suspension head 1 strand, with captive welded-in ring fork

Type IAK-RG-1 for standard load hook
Type IBK-RG-1 for smaller load hooks

ICE single-strand suspension head with welded ICE ring fork movable on all sides, thus forced connection for diameter chain and number of strands.

ICE connecting bolt and locking pin are pre-assembled. With movably connected complete 1-strand identification tag with integrated chain check gauge.

Surface: ICE pink powder coating. Manufactured according to
DIN EN 1677-4.

Technical Data & Downloads

Select a product above to view additional specifications, documents, dimensions, and classification standards for this article.
