Product description

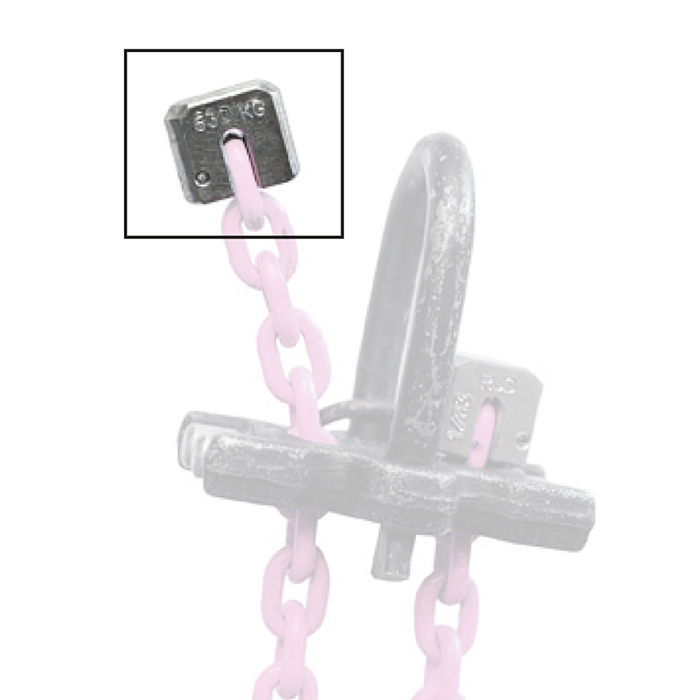

In the VIP minilifter, the chain strand must be secured by the VIP end stop VEA-4!
Specifications
| Working load limit | 630,00 kg |
| Max. operating temperature | 300,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 10 |
| Nominal strength | 1.000,00 N/mm2 |
| Single link type | End stop |
| Colour | pink |
| Nominal size | 4,0 |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-4 |
| Product description | End stop |
| Brand | VIP |
| Type designation | VEA |
| Manufacturer part number | 7990215 |
