Product description

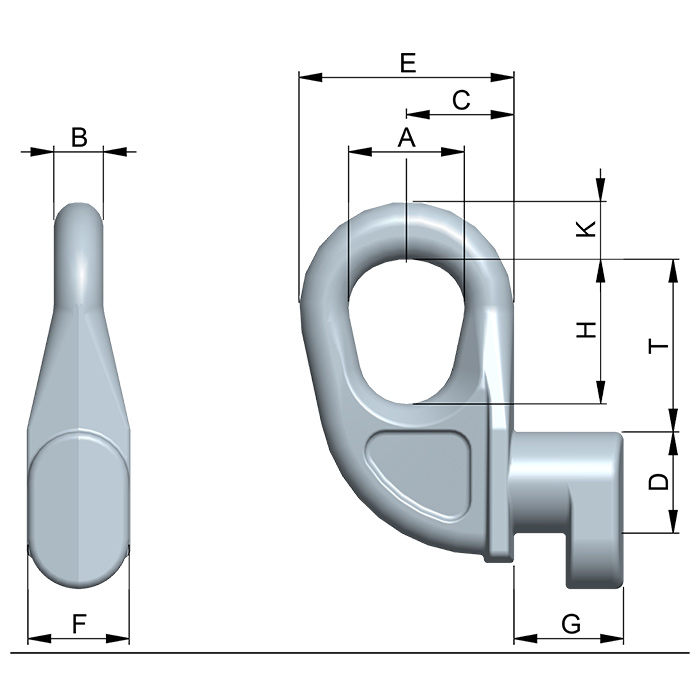

VCH-12,5 load capacity 12,5 t
- VCH-12,5 suitable for ISO container corner
- Fixed connection by means of VIP connecting lock VVS 16 and VIP mix-up-free fork shackle VV-GSCH 16 possible
- Loose component for hook suspension
- Are suitable from an angle of inclination of 30 to a maximum of 60 ° to lift the load
VCH K-16 lifting capacity 10 t
- VCH K-16 suitable for ISO container corners
- With patented safety lock. Falling out of the ISO corner is no longer possible during lifting.
- For clevis connection VIP chain NG 16
- Insertion: without actuation of the safety catch by automatic opening and closing.
- Removal: only possible when the unlocking bolt is actuated.
- Are suitable for vertical lifting and up to max. 45° angle of inclination.

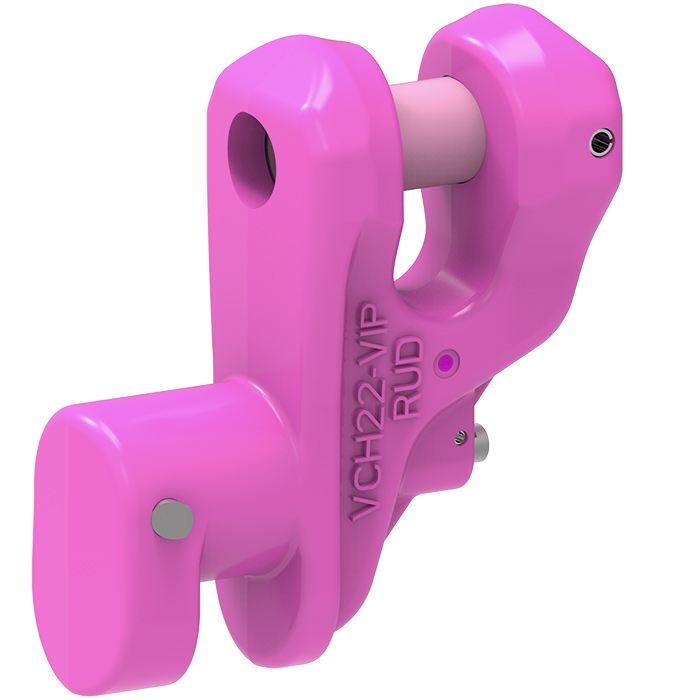

VCH SL-22 lifting capacity 20 t
- VCH SL-22 suitable for ISO container corners.
- With patented safety locking device. Function as for VCH SL-16.
- Falling out when lifting the load is therefore no longer possible
- For clevis connection VIP chain NG 22
- With VRG 16 - reduction VIP-chain 16 can be used
- Are suitable from an angle of inclination of 30 to a maximum of 60° to lift the load
