VIP lifting ring VLBG-Z

This high-performance screw-on lifting point is engineered for maximum safety and flexibility in load handling. Featuring a 100% crack-tested hexagonal bolt and certified to BG standards, it ensures secure lifting in the most demanding industrial environments. The robust load bracket is fully rotata...

show more
all variants
Price upon Request
payment options
E-MailWhatsapp
£91.98 / STright arrow
£105.36 / STright arrow
£119.84 / STright arrow
£129.96 / STright arrow
£132.36 / STright arrow
£190.31 / STright arrow
Working load limit1.000,00 kg
Thread Size1/2" - 13 UNC
Torque for perm. attachment100,00 Nm
Usable bolt length22,00 mm
right arrow
Working load limit1.500,00 kg
Thread Size5/8" - 11 UNC
Torque for perm. attachment150,00 Nm
Usable bolt length24,00 mm
right arrow
Working load limit2.500,00 kg
Thread Size3/4" - 10 UNC
Torque for perm. attachment250,00 Nm
Usable bolt length28,00 mm
right arrow
Working load limit2.500,00 kg
Thread Size7/8" - 9 UNC
Torque for perm. attachment300,00 Nm
Usable bolt length27,00 mm
right arrow
Working load limit4.000,00 kg
Thread Size1" - 8 UNC
Torque for perm. attachment400,00 Nm
Usable bolt length41,00 mm
right arrow
Working load limit5.000,00 kg
Thread Size1 1/4" - 7 UNC
Torque for perm. attachment500,00 Nm
Usable bolt length41,00 mm
right arrow

Product description

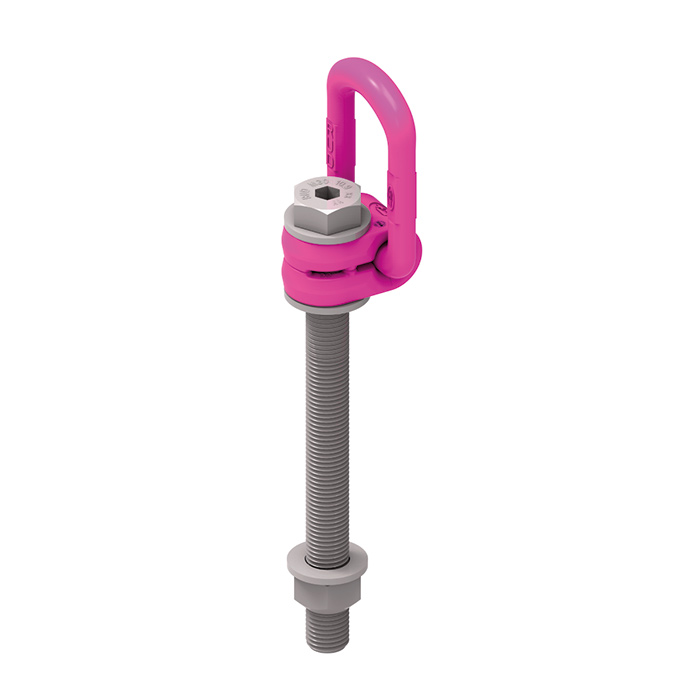

This high-performance screw-on lifting point is engineered for maximum safety and flexibility in load handling. Featuring a 100% crack-tested hexagonal bolt and certified to BG standards, it ensures secure lifting in the most demanding industrial environments.

The robust load bracket is fully rotatable 360° and foldable, allowing it to carry the full rated load in any pulling direction. This makes it ideal for complex lifting operations where angular force or load movement is required.

Only a single threaded or through hole is needed for installation, making it a space-efficient and time-saving solution for integration onto steel structures, machinery, or transport frames. Designed for extreme conditions, this lifting point can be used in temperatures as low as -40°C without compromising performance or safety.

Ideal for use in construction, manufacturing, transport, and heavy engineering, this versatile lifting point is a reliable anchor solution for professional lifting applications.

Technical Data & Downloads

Select a product above to view additional specifications, documents, dimensions, and classification standards for this article.
