- User-friendly ratchet tensioner - Patented, practical anti-rotation device - Magnetically adhering locking clutch - can also be used as an can also be used as an anti-theft device (lockable) - Exceeds the requirements of EN 12195-3 - Innovative forged shape - light and robust - Easy to clean and g...
show more
- User-friendly ratchet tensioner
- Patented, practical anti-rotation device
- Magnetically adhering locking clutch - can also be used as an
can also be used as an anti-theft device (lockable)
- Exceeds the requirements of EN 12195-3
- Innovative forged shape - light and robust
- Easy to clean and grease
Instructions for use:
- Permitted for tie-down and direct lashing
- Exception: Type ICE-CURT-16-GAKO. This product may only be used for direct lashing.
| Max. operating temperature | 100,00 °C |
| Min. operating temperature | -40,00 °C |
| Material | Steel |
| Connector type | Clevis connection |
| Load chain diameter | 13,00 mm |
| Standard | DIN EN 1677-1 |
| Product description | Ratchet Tensioner |
| Brand | ICE |
| Lashing capacity | 16.000,00 daN |
| Pretension force STF | 2.800,00 daN |
| Type designation | ICE-CURT-13-GAKO |
| Manufacturer code | D1 |
| Manufacturer part number | 7902624 |

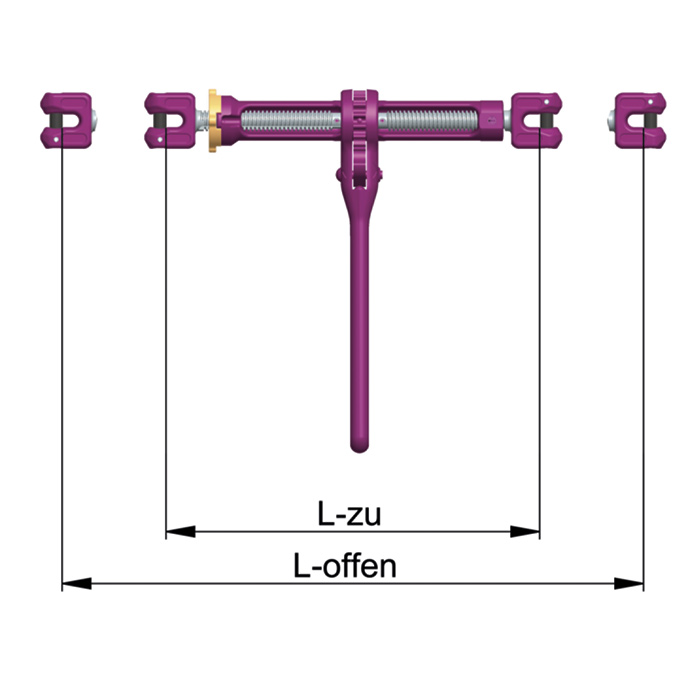

| L1 | 830 mm |
| L2 | 530 mm |
| eClass 6.2 | 20420290 |
| eClass 4.0 | 23170401 |
| eClass 4.1 | 23170401 |
| eClass 5 | 20420200 |
| eClass 7.1 | 20420290 |
| UNSPSC V7 | 24141500 |
| eClass 8.0 | 20420290 |
| UNSPSC V13.5 | 24141500 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 20420290 |
| eClass 5.1 | 20420200 |
| eClass 9.0 | 20420290 |
| eClass 10.0.1 | 20420290 |
| GTIN | 4008244381073 |
| eClass 10.1 | 20420290 |
| UNSPSC V20.0601 | 24141500 |
| eClass 5.1.4 | 20420290 |
| UNSPSC V13.5_S | 2414 |
