Thread Size: M12
Thread length: 50,00 mm
Lashing capacity: 6.000,00 daN
all variants
Materialnumber: 40151000015015
Free Return: no
Free Shipping: No, see Checkout
£38.63
Final price is shown in the shopping cart.
Expected to arrive in: >30 working days
payment options
E-MailWhatsapp
£38.63 / ST right arrow
Thread SizeM12
Thread length50,00 mm
Lashing capacity6.000,00 daN
right arrow

Product description

The SMILEY lashing point is specifically designed for Roll-on/Roll-off (RoRo) ships, providing a dependable anchorage solution for securing cargo during maritime transport. Engineered for strength and reliability, this lashing point ensures safe and efficient lashing of vehicles, containers, and heavy loads on RoRo vessels.

Manufactured from high-grade steel and designed for weld-on installation, the SMILEY lashing point offers a robust and permanent fixture on decks or transport platforms. Its compact and ergonomic design allows for quick and easy attachment of lashing equipment such as chains, straps, or hooks—even in tight spaces.

With its proven performance in marine environments, the SMILEY lashing point helps meet the high safety standards required for offshore and shipping operations. Ideal for both new builds and retrofitting, it's a trusted choice for improving safety and efficiency in RoRo cargo handling.

Complies with DIN EN 29367-2 Tensile properties with a proof load of 120 kN

Technical Data & Downloads

Specifications

Max. operating temperature100,00 °C
Min. operating temperature-20,00 °C
MaterialSteel
Attachment typeScrewable
Thread length50,00 mm
Material thickness20,00 mm
Holding spring for susp. linkNo
Swivel range suspension link0 Degree
Bolt quality10.9
Surface treatmentGalvanized
Thread SizeM12
StandardEN 29367,similar DIN EN 1677
Torque for perm. attachment70,00 Nm
Lashing capacity6.000,00 daN
Type designationRoRo
Manufacturer part number7997726

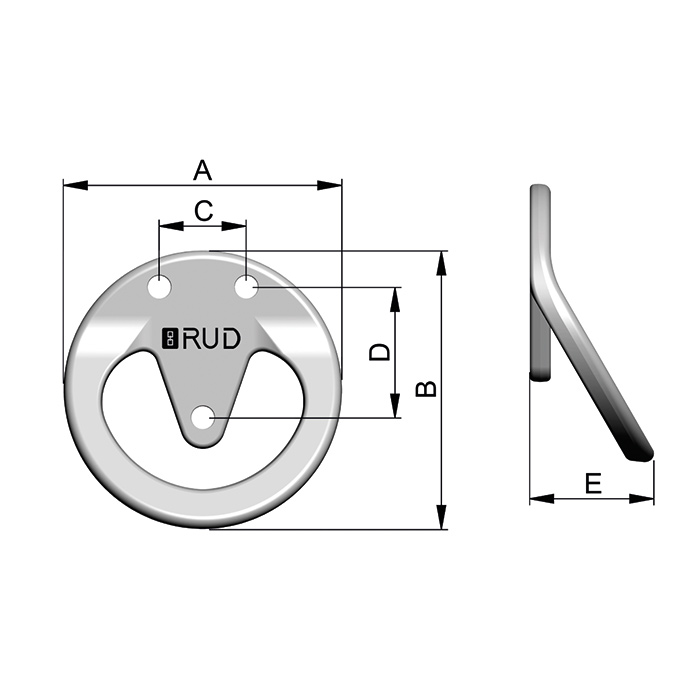

Dimensions

A160 mm
B160 mm
C50 mm
D75 mm
E72 mm
SMILEY RoRo-Zurrpunkt

Classification standards

eClass 6.220420290
eClass 520420200
eClass 7.120420290
UNSPSC V724141500
eClass 8.020420290
UNSPSC V13.524141500
Defined eStandard1
eClass 5.1.120420290
eClass 5.120420200
eClass 9.020420290
eClass 10.0.120420290
GTIN4008244381240
eClass 10.120420290
UNSPSC V20.060124141500
eClass 5.1.420420290
UNSPSC V13.5_S2414
