Lashing Point SLP 10.000daN HY5

£96.49
Final price is shown in the shopping cart.
Materialnumber
40151000015016

Free Return
no
Free Shipping
No, see Checkout
Shipping
Expected to arrive in 6-30 working days
Payment options:
E-MailWhatsapp
Max. operating temperature400,00 °C
Min. operating temperature-20,00 °C
MaterialSteel
Inner Width60,00 mm
Attachment typeWeldable
Welding seamHY5
Material thickness25,00 mm
Holding spring for susp. linkYes
Swivel range suspension link225,00 Degree
Standardsimilar DIN EN 1677
Product descriptionLashing Point
Lashing capacity10.000,00 daN
Type designationSLP
Manufacturer part number7911358
eClass 6.220420290
eClass 520420200
eClass 7.120420290
UNSPSC V724141500
eClass 8.020420290
UNSPSC V13.524141500
Defined eStandard1
eClass 5.1.120420290
eClass 5.120420200
eClass 9.020420290
eClass 10.0.120420290
eClass 10.120420290
UNSPSC V20.060124141500
eClass 5.1.420420290
UNSPSC V13.5_S2414

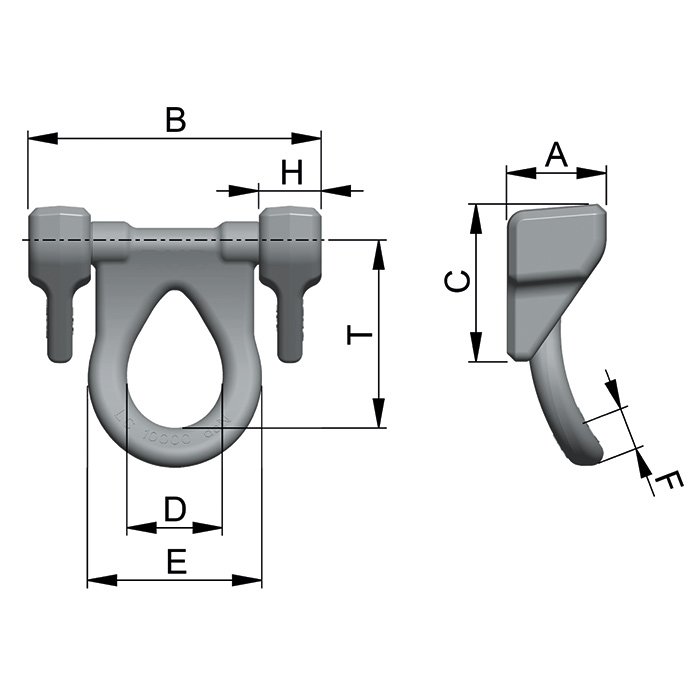

A63 mm
B185 mm
C100 mm
D60 mm
E110 mm
F25 mm
H40 mm
T115 mm
Star Lashing Point SLP

Product description

The SLP weldable lashing point is a compact yet powerful solution for securely anchoring loads in transport, construction, and industrial environments. Designed for permanent welding to steel structures, vehicle platforms, or machinery, the SLP provides a fixed and durable attachment point for lashing chains or straps. Manufactured from high-grade steel and engineered to meet demanding load securing requirements, the SLP offers a high lashing capacity in a minimal footprint. Its low-profile design makes it ideal for areas with limited space while still providing excellent strength and reliability under heavy loads. Perfect for RoRo applications, trailers, and heavy equipment, the SLP weldable lashing point supports safe and efficient cargo restraint. Whether used for industrial logistics or on-site equipment transport, it ensures your loads remain firmly secured during transit. • Loadable from all directions• Slewing range 225°, with integrated clamping spring• Lashing also possible with protruding loads• No subsurface corrosion of the weld-on blocks• With lashing capacity LC indication in daN• Patent pending
