| Working load limit | 3.000,00 kg |
| Max. operating temperature | 50,00 °C |
| Min. operating temperature | -20,00 °C |
| Explosion protection | No |
| Surface | Aluminium natural |
| Inside Wdth of Suspension Eye | 90,00 mm |
| Inside Height Suspension Eye | 94,00 mm |
| Standard | DIN EN 13155 |
| Max. load changes | 16,000 Load changes |
| Crane connection | Crane eye |
| Adjustable crane connection | No |
| Fork lifter connection | No |
| Load connection | Swivelhook |
| Impact protection | No |
| Asymmetric setting permitted | Yes |
| Load connetion adjustable | Yes |
| Type of adjustment load con. | with connecting pins |
| Load connection shortened | No |
| Design type | H-beam |
| Quant. crane connection | 1 |

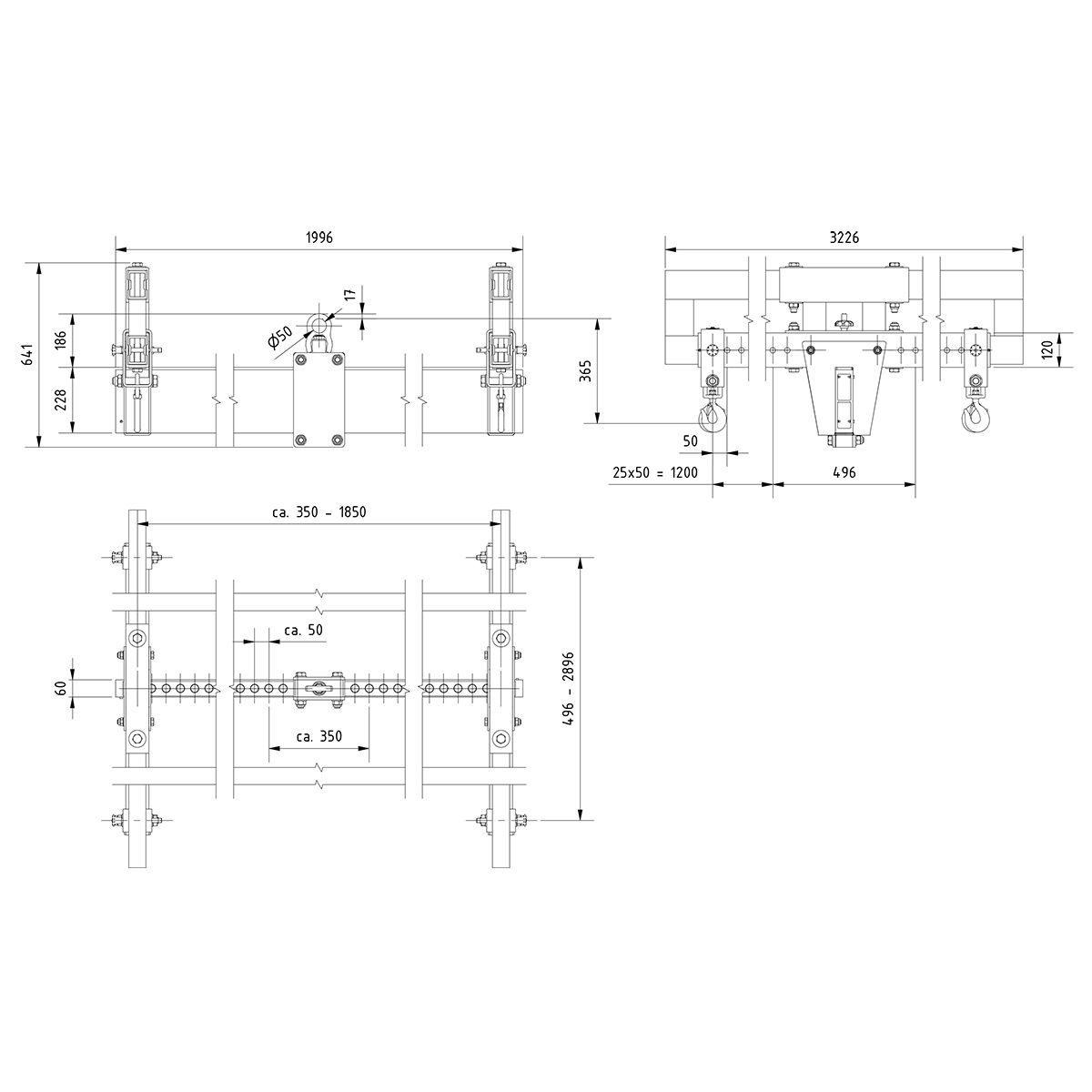

| Product description | Multibeam Spreader |
| Quant. load connections | 4 |
| working width L1 min. | 350,00 mm |
| working width L1 max. | 1.850,00 mm |
| Min. working width L2 | 496,00 mm |
| Max. working width L2 | 2.896,00 mm |
| Working width adjustable | Yes |
| Manufacturer part number | 53302030 |
| eClass 6.2 | 36123402 |
| eClass 7.1 | 36123402 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 36123402 |
| UNSPSC V13.5 | 24101600 |
| eClass 5.1.1 | 36129202 |
| eClass 5.1 | 36129202 |
| eClass 9.0 | 36123402 |
| eClass 10.0.1 | 36123402 |
| eClass 10.1 | 36123402 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 36129202 |
| UNSPSC V13.5_S | 241016 |
• With four adjustable safety load hooks, which can be rotated 360° under load.
• With traverse suspension for crane hooks.
• Quick-release system for quick adjustment and changeover of the load hooks on the main- and crossbeams in 50 mm grid dimensions.
• All parts are either made of aluminium or very high quality plastic (except the bolts, traverse suspension and safety load hooks).
