| Working load limit | 1.500,00 kg |
| Max. operating temperature | 50,00 °C |
| Min. operating temperature | -20,00 °C |
| Explosion protection | No |
| Surface | Aluminium natural |
| Inside Wdth of Suspension Eye | 90,00 mm |
| Inside Height Suspension Eye | 94,00 mm |
| Standard | DIN EN 13155 |
| Description of load | Big Bag's |
| Max. load changes | 16,000 Load changes |
| Crane connection | Crane eye |
| Adjustable crane connection | No |
| Fork lifter connection | Yes |
| Load connection | Swivelhook |
| Impact protection | No |
| Load connetion adjustable | No |
| Load connection shortened | No |
| Working width L1 (mm) | 1.000,00 mm |
| Design type | Alu cross beam for big-bag |
| Quant. crane connection | 1 |

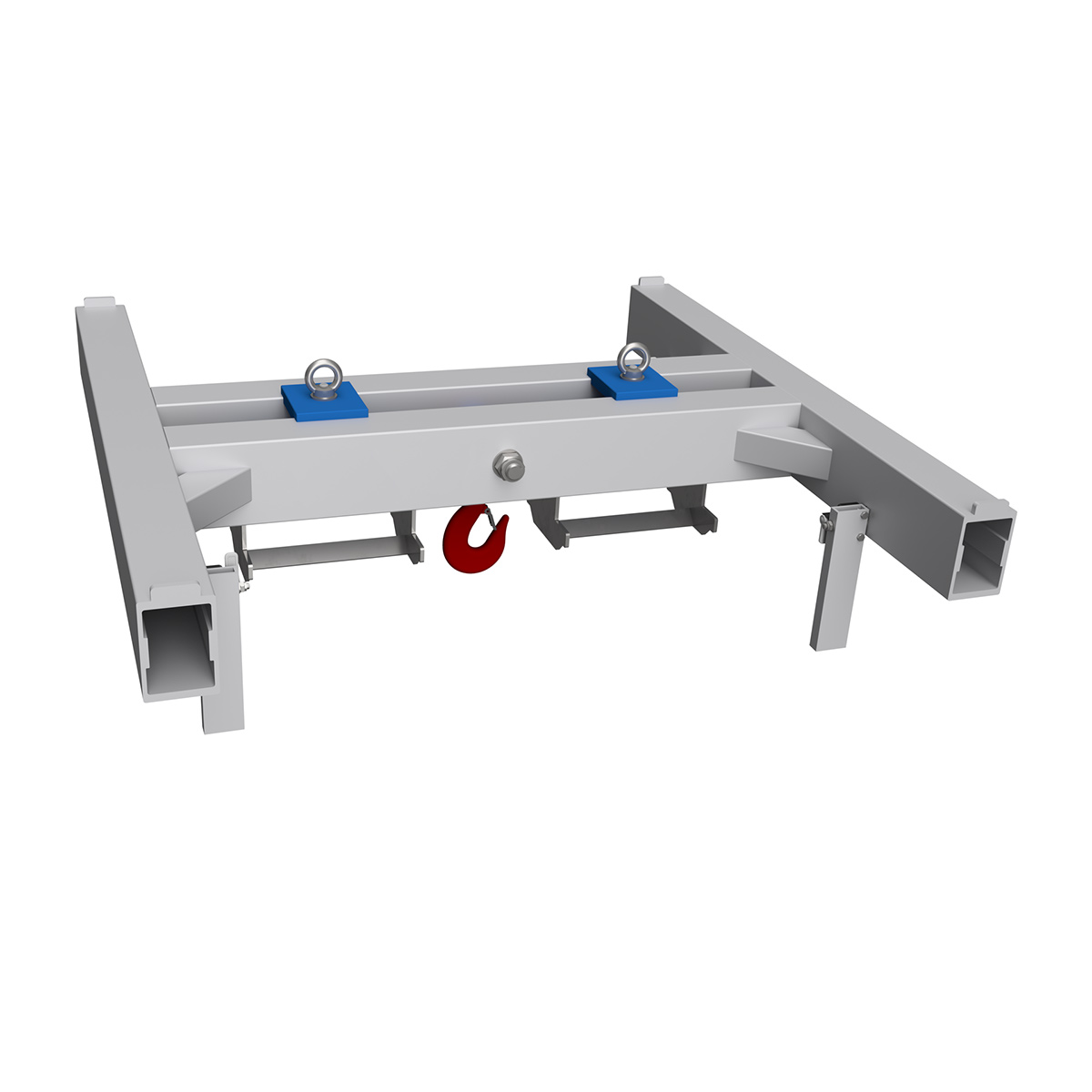

| Product description | Multibeam Spreader |
| Quant. load connections | 1 |
| Min. working width L2 | 1.000,00 mm |
| Working width adjustable | Yes |
| Manufacturer part number | 54151010 |
| eClass 6.2 | 36123402 |
| eClass 7.1 | 36123402 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 36123402 |
| UNSPSC V13.5 | 24101600 |
| eClass 5.1.1 | 36129202 |
| eClass 5.1 | 36129202 |
| eClass 9.0 | 36123402 |
| eClass 10.0.1 | 36123402 |
| eClass 10.1 | 36123402 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 36129202 |
| UNSPSC V13.5_S | 241016 |
• With crane hook holder
• The Big-Bag-Traverse can also be hooked directly into a hoist (e.g. pulley block)
• With 2 holders for forklift tines
- stepless movable
- steplessly adjustable to a maximum fork profile of 240 x 115 mm
• With 4 point suspension (on the face)
- for hanging up the loop of the Big-Bag
