| Working load limit | 1.000,00 kg |
| Max. operating temperature | 80,00 °C |
| Min. operating temperature | 0 °C |
| Explosion protection | No |
| Surface | Varnished |
| RAL colour no. | RAL 7035 / RAL 3020 |
| Inside Wdth of Suspension Eye | 50,00 mm |
| Inside Height Suspension Eye | 90,00 mm |
| Standard | DIN EN 13155 |
| Max. load changes | 20,000 Load changes |
| Crane connection | Crane eye |
| Adjustable crane connection | No |
| Fork lifter connection | No |
| Load connection | Safetyhook |
| Impact protection | No |
| Hazardous material | No |
| Asymmetric setting permitted | No |
| Max. permissible inclination | 6° |
| Turning function | No |
| Load connetion adjustable | Yes |
| Type of adjustment load con. | with connecting pins |
| Effective height | 290,00 mm |
| Total width | 1.010,00 mm |
| Design type | Omega cross beam |
| Quant. crane connection | 1 |
| Product description | Lifting beam |
| Quant. load connections | 2 |
| Type name | 8293 |
| working width L1 min. | 250,00 mm |
| working width L1 max. | 850,00 mm |
| Working width adjustable | Yes |
| eClass 6.2 | 36123402 |
| eClass 4.0 | 36122204 |
| eClass 4.1 | 36122204 |
| eClass 5 | 36129290 |
| eClass 7.1 | 36123402 |
| UNSPSC V7 | 24101612 |
| eClass 8.0 | 36123402 |
| UNSPSC V13.5 | 24101612 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 36129202 |
| eClass 5.1 | 36129202 |
| eClass 9.0 | 36123402 |
| eClass 10.0.1 | 36123402 |
| eClass 10.1 | 36123402 |
| UNSPSC V20.0601 | 24101612 |
| eClass 5.1.4 | 36129202 |
| UNSPSC V13.5_S | 241016 |

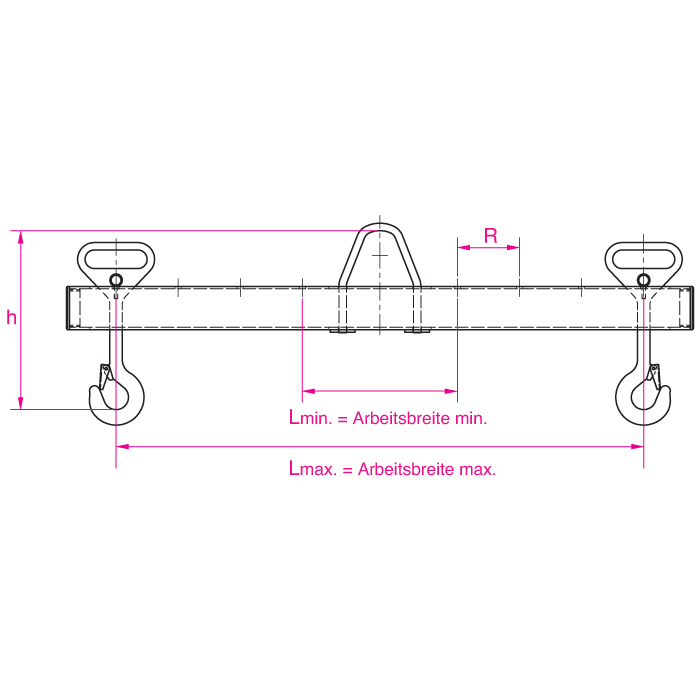

| h | 290 mm |
| R | 100 mm |
| Lmax | 850 mm |
| Lmin | 250 mm |
- Load traverse in modular system with curved suspension eye as single point suspension, suitable for load hooks according to DIN 15401 and with two adjustable, fired safety load hooks.
- Available in fixed version on request.
- Smaller and larger load capacities on request
